Switch type - stainless steel two way electric valve Motorized ball valve
A20-T20-S2-CH

1. Beautiful appearance, compact structure, high precision, large output torque, service life is not less than 70,000 times.


2. The actuator and valve can be assembled from multiple angles, which is convenient for users to allocate space.


3. Ball valve adopts floating soft seal structure, no drip leakage, suitable for heavy dirt and long-term no action occasions.


4. Protection grade IP67, can be used in relatively humid environment.


Product model
Installation
Mobile View
Technical parameters
Valve size
BSP/NPT 3/4''
Maximum working pressure
1.0MPa
Circulation medium
Fluid、air
Working voltage
AC/DC9-24V AC110-230V
Wiring diagram
CR202 CR305 CR306 CR303 CR502 CR705 CR706
Working current
≤500mA
Openiclose time
7S
Life time
70000times
Valve body material
SS304 SS316
Actuator material
PPO
Actuator rotation
90°
Torque force
2N.m 3N.m
Cable length
0.5M 1.5M
Environment temperature
-15-55℃
Liquid temperature
2-90℃
Manual override
No
Open/close indicator
Yes
Protection class
IP67

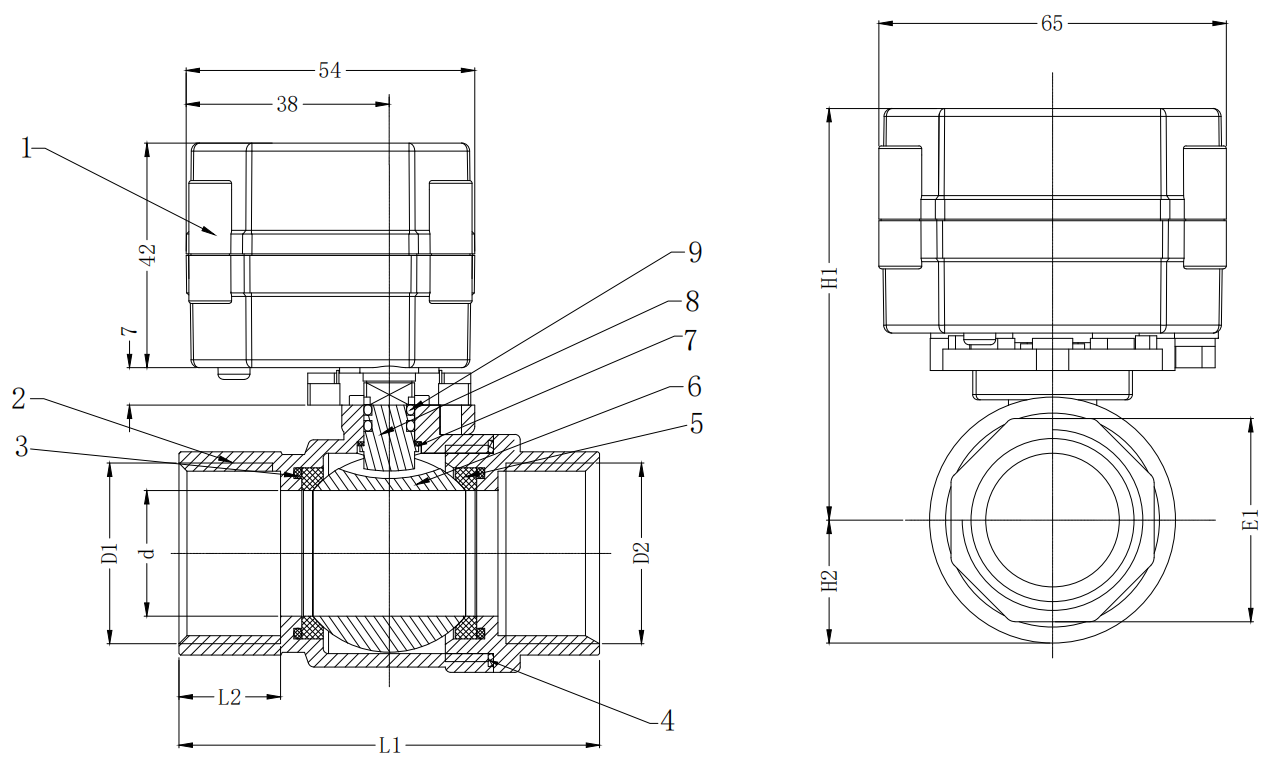

The assembly diagram
The wiring diagram
Tutorial video
