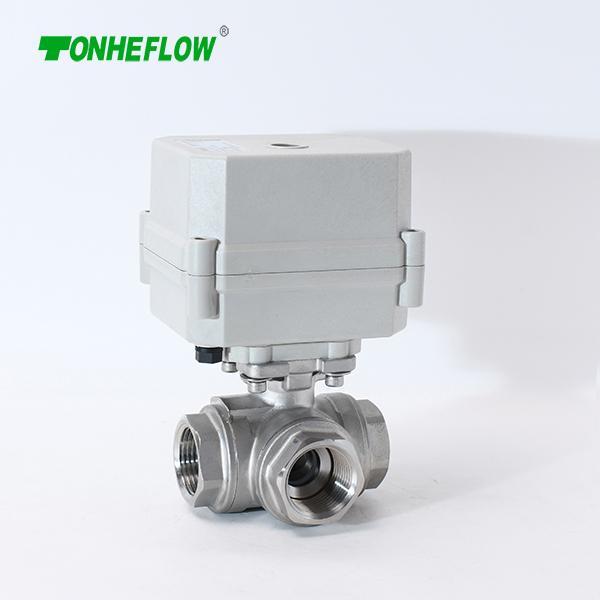

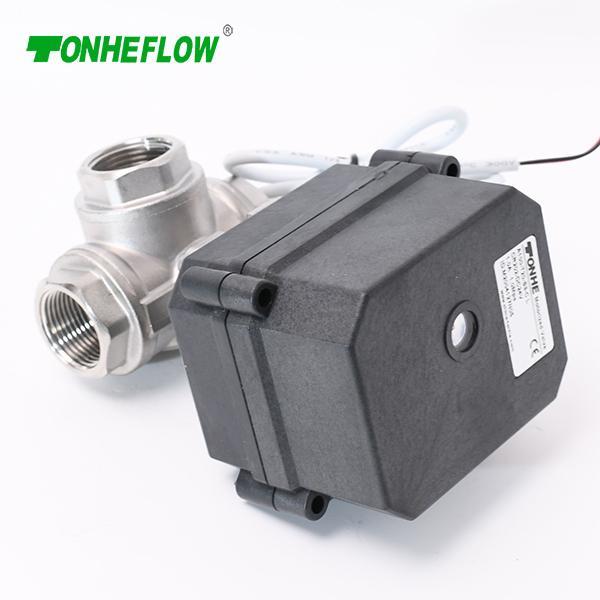

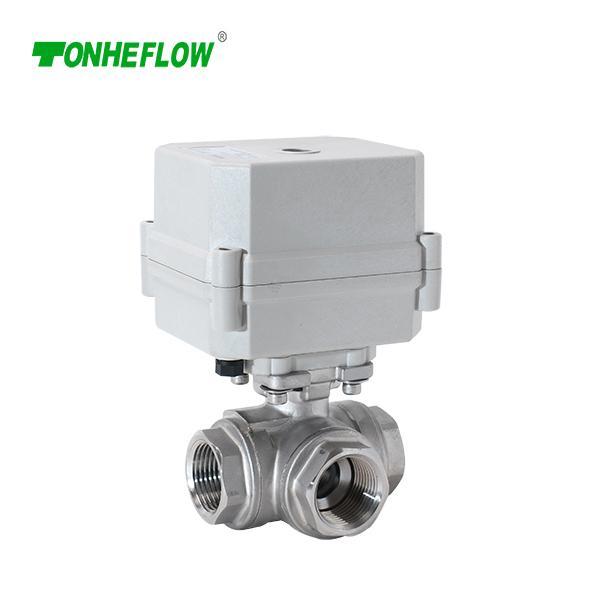

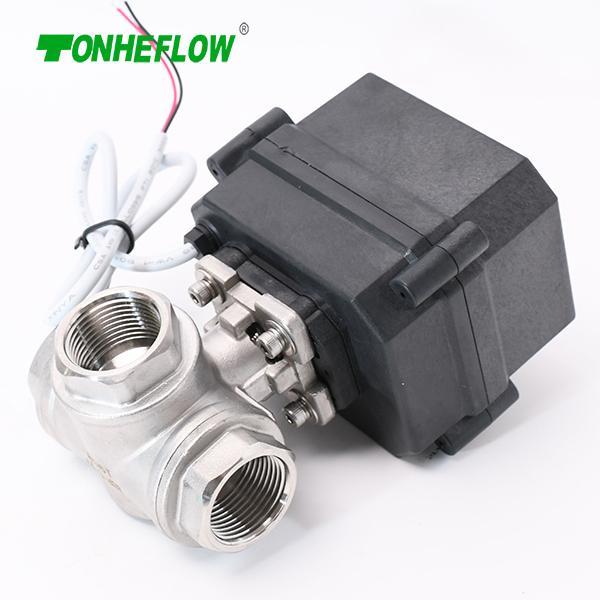

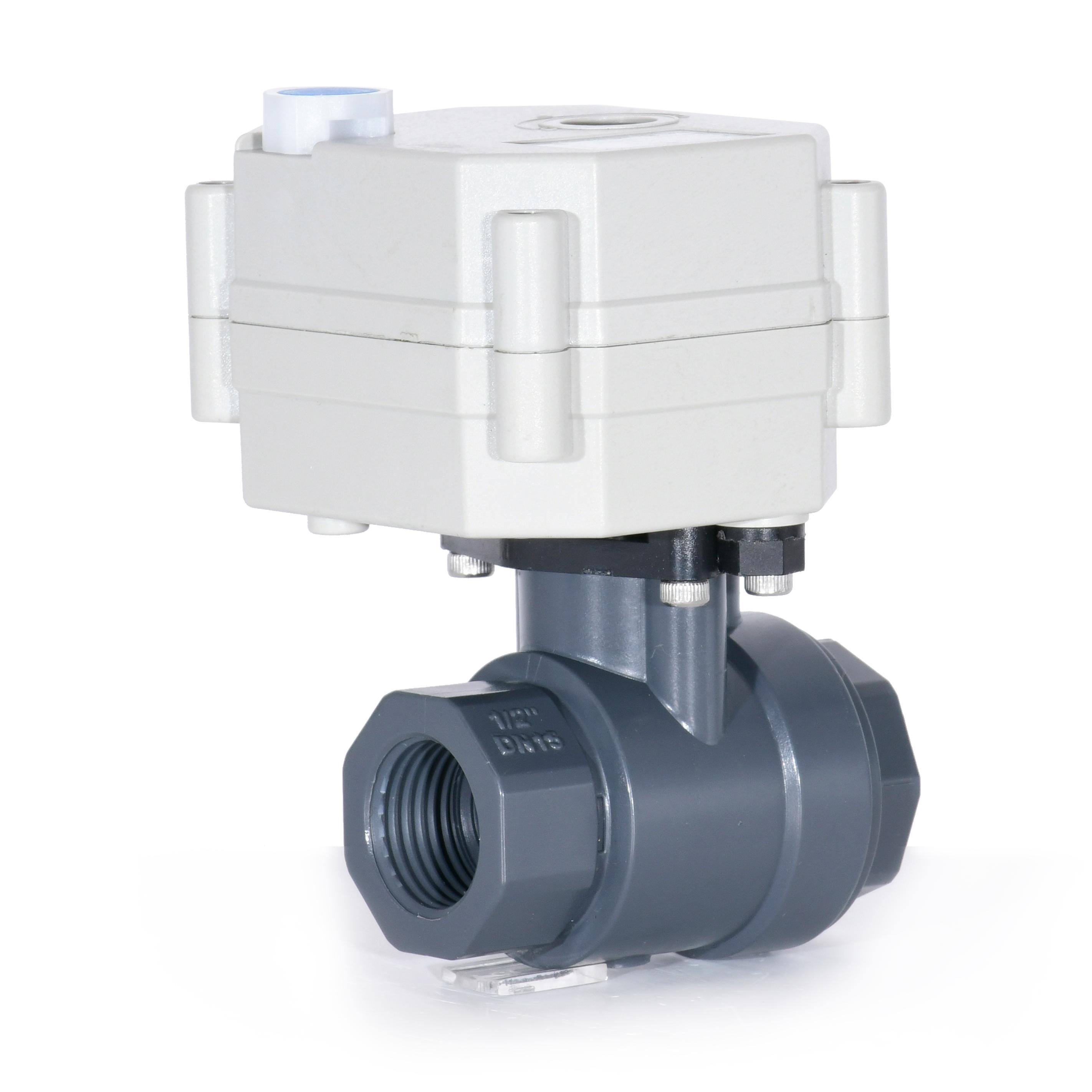

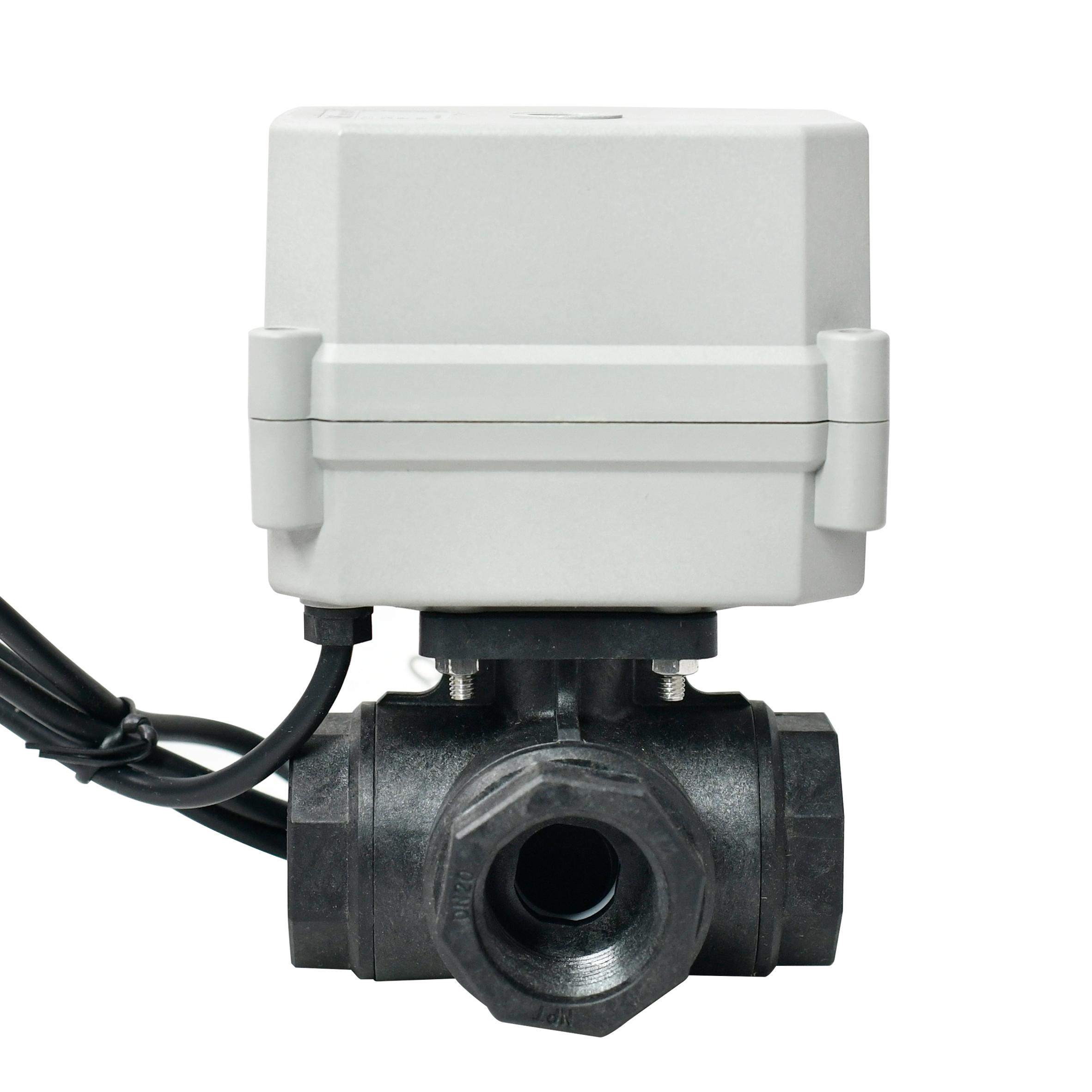

1. Beautiful appearance, compact structure, high precision, large output torque, service life is not less than 70,000 times.
2. The actuator and valve can be assembled from multiple angles, which is convenient for users to allocate space.
3. Ball valve adopts floating soft seal structure, no drip leakage, suitable for heavy dirt and long-term no action occasions.
4. Protection grade IP67, can be used in relatively humid environment.
1.RD connect with positive, the BK connect with negative, the valve closed, the actuator automatically power off after in place, the valve remains fuly closed position.
2.BK connect with positive, the RD connect with negative, the valve open, the actuator automatically power off after in place,the valve remains fully open position.
*Suitable Working Voltage: DC5V,DC12V,DC24V
*Exceeding the working voltage is forbidden
1.Red & Green connect with positive, the BK connect with negative.
2.SW CLOSED, the valve OPEN, the actuator automatically power off after in place.
3.SW OPEN, the valve CLOSED, the actuator automatically power off after in place.
*Suitable Working Voltage: AC/DC9-24V,AC110-230V
*Exceeding the working voltage is forbidden
1.Red connect with positive, the Black connect with negative, the valve closed, the actuator automatically power off after in place.
2.Black connect with positive, the Red connect with negative, the valve open, the actuator automatically power off after in place.
3.Green & White connect with the valve's fully open signal wiring.
4.Yellow & White connect with the valve's fully closed signal wiring.
*Suitable Working Voltage:DC5V,DC12V,DC24V
*Exceeding the working voltage is forbidden
1.RD& GR connect with positive, the BK connect with negative.
2.SW CLOSED, the valve OPEN, the actuator automatically power off after in place.
3.SW OPEN, the valve CLOSED, the actuator automatically power off after in place.
4.BL & GY connect with the valve's fully open signal wiring.
5.Yw & WT connect with the valve's fully closed signal wiring.
*Suitable Working Voltage: AC/DC9-24V.AC110-230V
*Exceeding the working voltage is forbidden
1.When SW is closed, the valve OPEN. the actuator automatically power off after in place.
2.When SW is open, the valve CLOSED, the actuator automatically power off after in place.
*Suitable Working Voltage: AC/DC9-24V AC110-230V
*Exceeding the working voltage is forbidden
1.Red & Green connect with positive, the Black connect with negative.
2.SW CLOSED, the valve OPEN, the actuator automatically power off after in place.
3.SW OPEN, the valve CLOSED, the actuator automatically power off after in place.
4.When external power off, the valve CLOSED, the actuator automatically power off after in place.
* Suitable Working Voltage: AC/DC9-24V,AC110-230V
*Exceeding the working voltage is forbidden
1.Red & Green connect with positive, the Black connect with negative.
2.SW CLOSED, the valve OPEN, the actuator automatically power off after in place.
3.SW OPEN, the valve CLOSED, the actuator automatically power off after in place.
4.When extemal power off, the valve OPEN, the actuator automatically power off after in place.
*Suitable Working Voltage: AC/DC9-24V,AC110-230V
*Exceeding the working voltage is forbidden
1.Red & Black are connected to the power, Green & YW are connected to the controlled wiring.
2.When the SW is closed, the valve open.
3.When the SW is OPEN , the valve CLOSED Suitable Working.
*Voltage:AC/DC110V-230V
*Exceeding the working voltage is forbidden
The control wiring with power DC5V, when muitiple motorized valves are working in paralled, must put the same color control wiring together, otherwise the valve could working normally
1.When SW is closed, the valve OPEN. the actuator automatically power off after in place.
2.When SW is open, the valve CLOSED, the actuator automatically power off after in place.
3.Green & White connect with the valve's fully open signal wiring.
4.Yellow & White connect with the valve's fully closed signal wiring.
*Suitable Working Voltage: AC/DC9-24V, AC/DC110V-230V
*Exceeding the working voltage is forbidden
1.RD & BK are connected to the power, BL & GY are connected to the controlled wiring.
2.When the SW is closed, the valve open.
3.When the SW is open, the valve closed.
4.GR & WT connect with the valve's fully OPEN signal wiring.
5.YW & WT connect with the valve's fully CLOSED signal wiring.
*Suitable Working Voltage: AC/DC110V-230V
*Exceeding the working voltage is forbidden
1.RD & GR connect with positive, the BK connect with negative.
2.SW CLOSED, the valve OPEN, the actuator automatically power off after in place.
3.SW OPEN, the valve CLOSED, the actuator automatically power off after in place.
4. When external power off, the valve closed, the actuator automatically power off after in place.
5.BL & GY connect with the valve's fully open signal wiring.
6.YW & WT connect with the valve's fully closed signal wiring.
*Suitable Working Voltage: AC/DC9-24V,AC110-230V
*Exceeding the working voltage is forbidden
1.RD & GR connect with positive, the BK connect with negative.
2.SW CLOSED, the valve OPEN, the actuator automatically power off after in place .
3.SW OPEN, the valve CLOSED, the actuator automatically power off after in place.
4. When external power off, the valve open, the actuator automatically power off after in place.
5.BL & GY connect with the valve's fully open signal wiring.
6.YW & WT connect with the valve's fully closed signal wiring.
* Suitable Working Voltage: AC/DC9-24V,AC110-230V
*Exceeding the working voltage is forbidden
