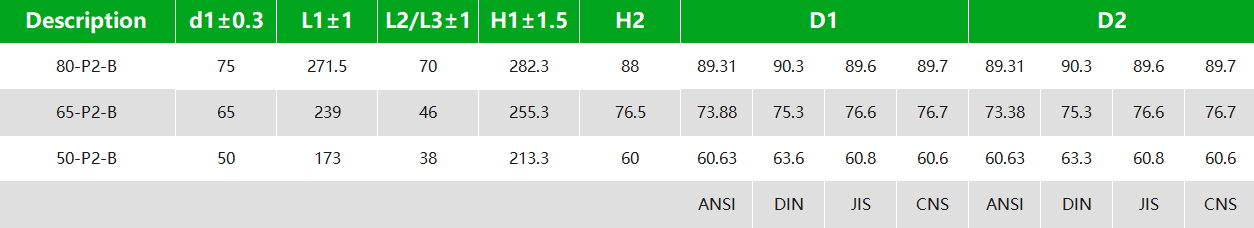

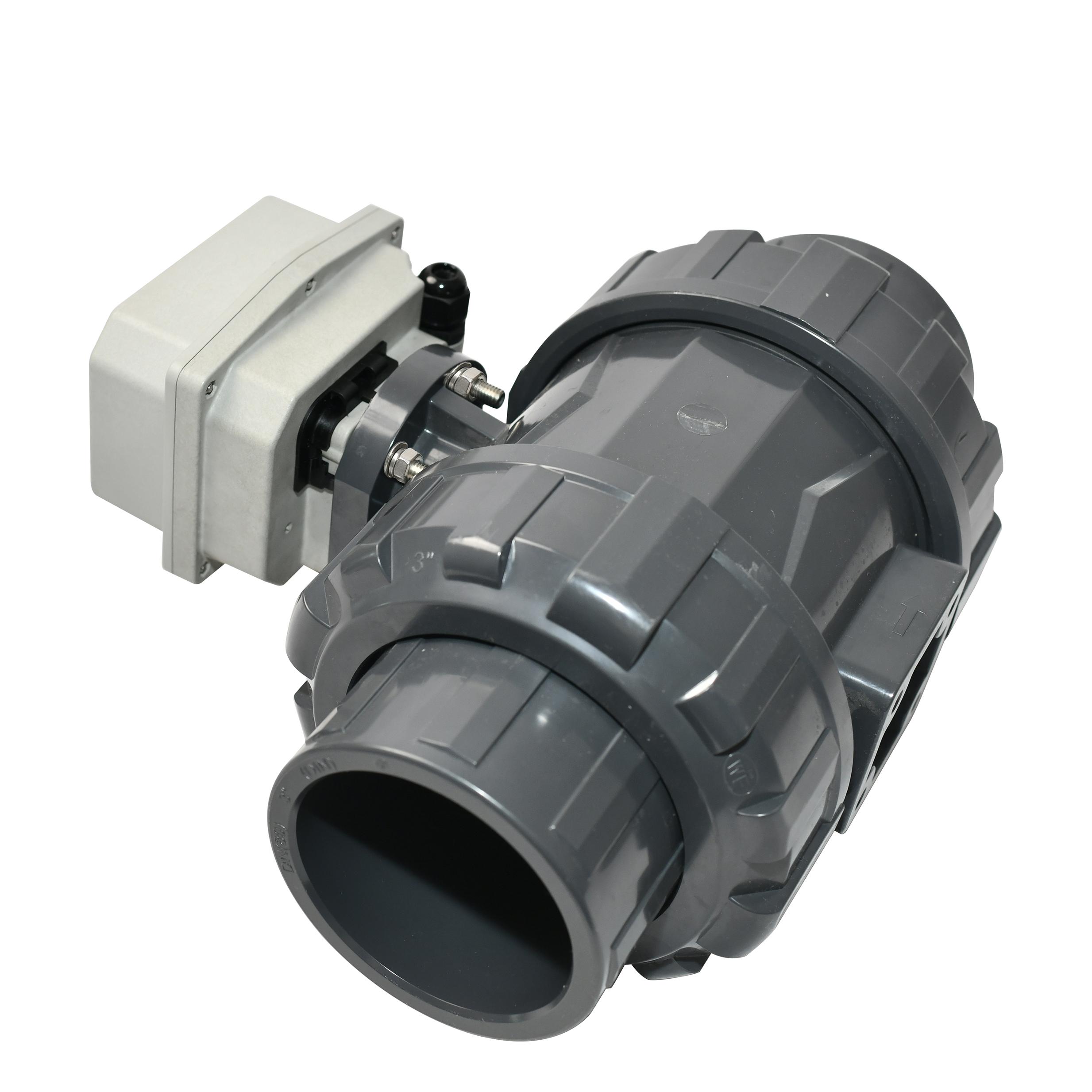

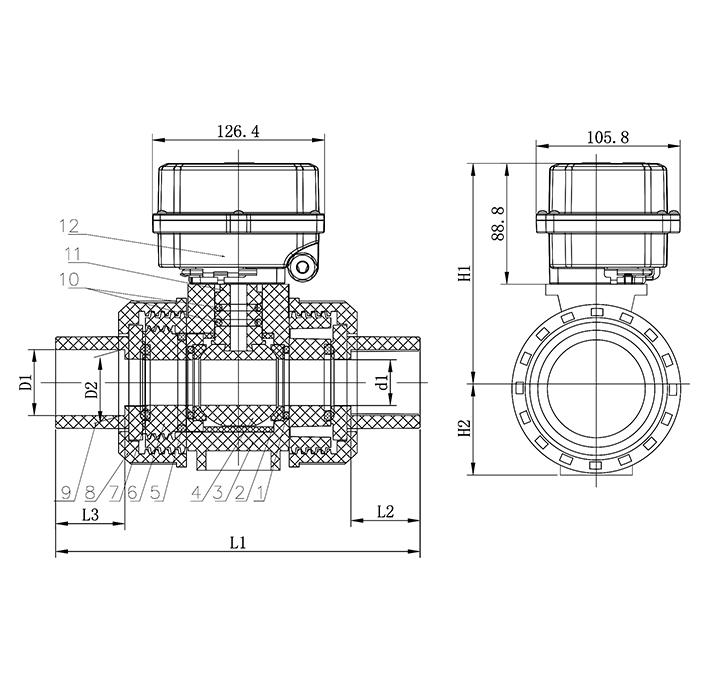

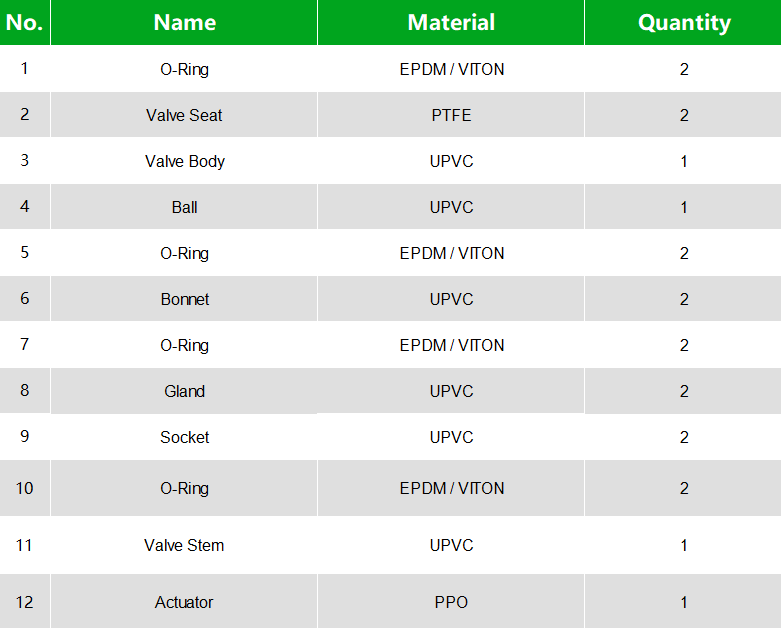

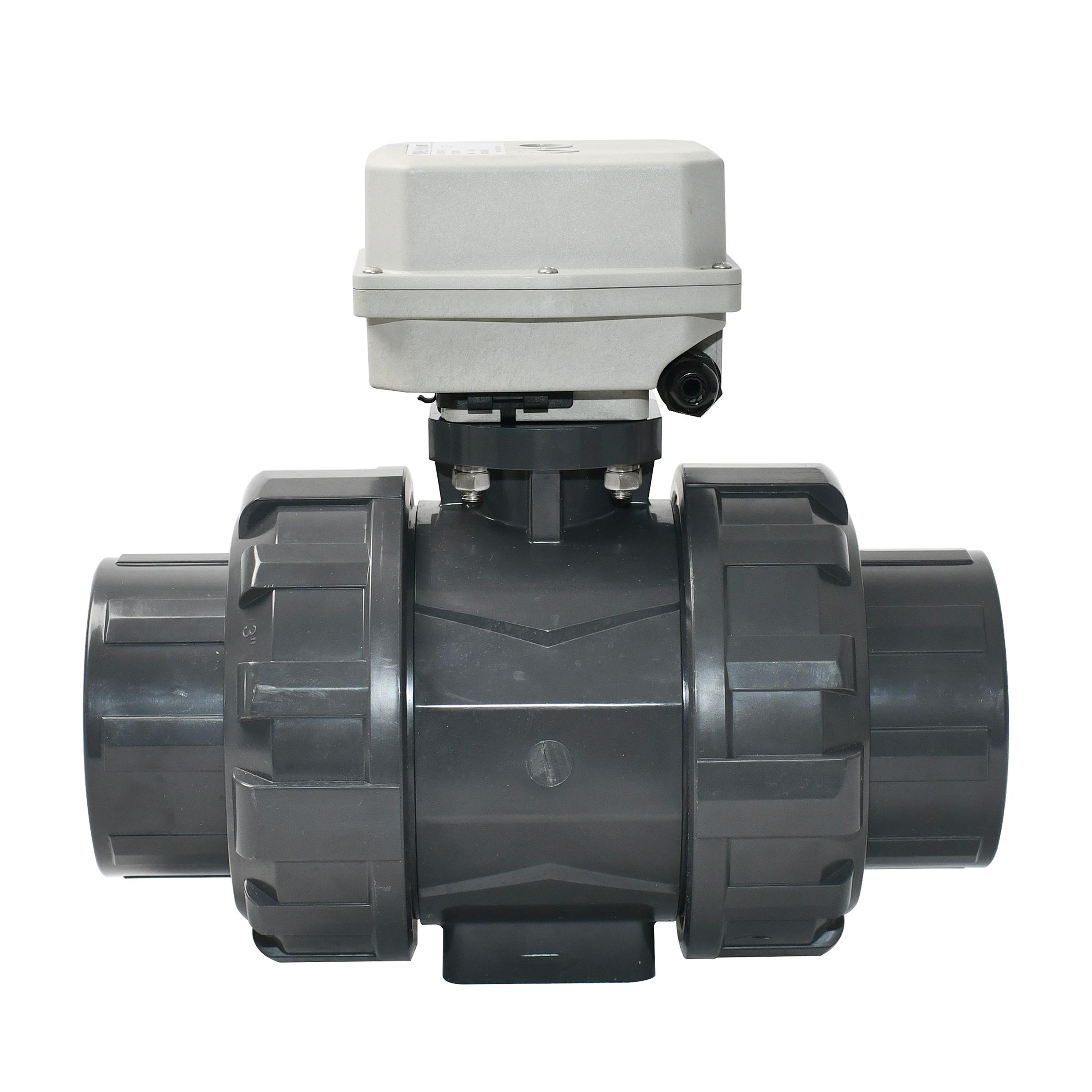

1. Beautiful appearance, compact structure, high precision, large output torque, service life is not less than 30,000 times.
2. The actuator and valve can be assembled from multiple angles, which is convenient for users to allocate space.
3. Ball valve adopts floating soft seal structure, no drip leakage, suitable for heavy dirt and long-term no action occasions.
4. Protection grade IP67, can be used in relatively humid environment.
CR201 (2 Wires Control)
1.Red connect with positive, Black connect with negative, valve CLOSE, maintain after fully closed.
2.Black connect with negative, Red connect with positive, valve OPEN, maintain after fully open.
* Suitable Working Voltage: DC5V, DC12V, DC24V
* Exceeding the working voltage is forbidden
CR301 (3 Wires Control)
1.Red & Green connect with positive, Black connect with negative.
2.SW connect with Red, valve OPEN, maintain after fully open.
3.SW connect with Green, valve CLOSE, maintain after fully closed.
* Suitable Working Voltage: DC5V, DC12V, DC24V, DC12-24V, AC/DC110-230V
* Exceeding the working voltage is forbidden
CR303 (3 Wires Control)
1.Red & Green connect with positive, Black connect with negative.
2.SW CLOSE, valve OPEN, maintain after fully open.
3.SW OPEN, valve CLOSE, maintain after fully closed.
* Suitable Working Voltage: DC12V, DC24V, DC9-24V, AC/DC9-35V, AC/DC110-230V
* Exceeding the working voltage is forbidden

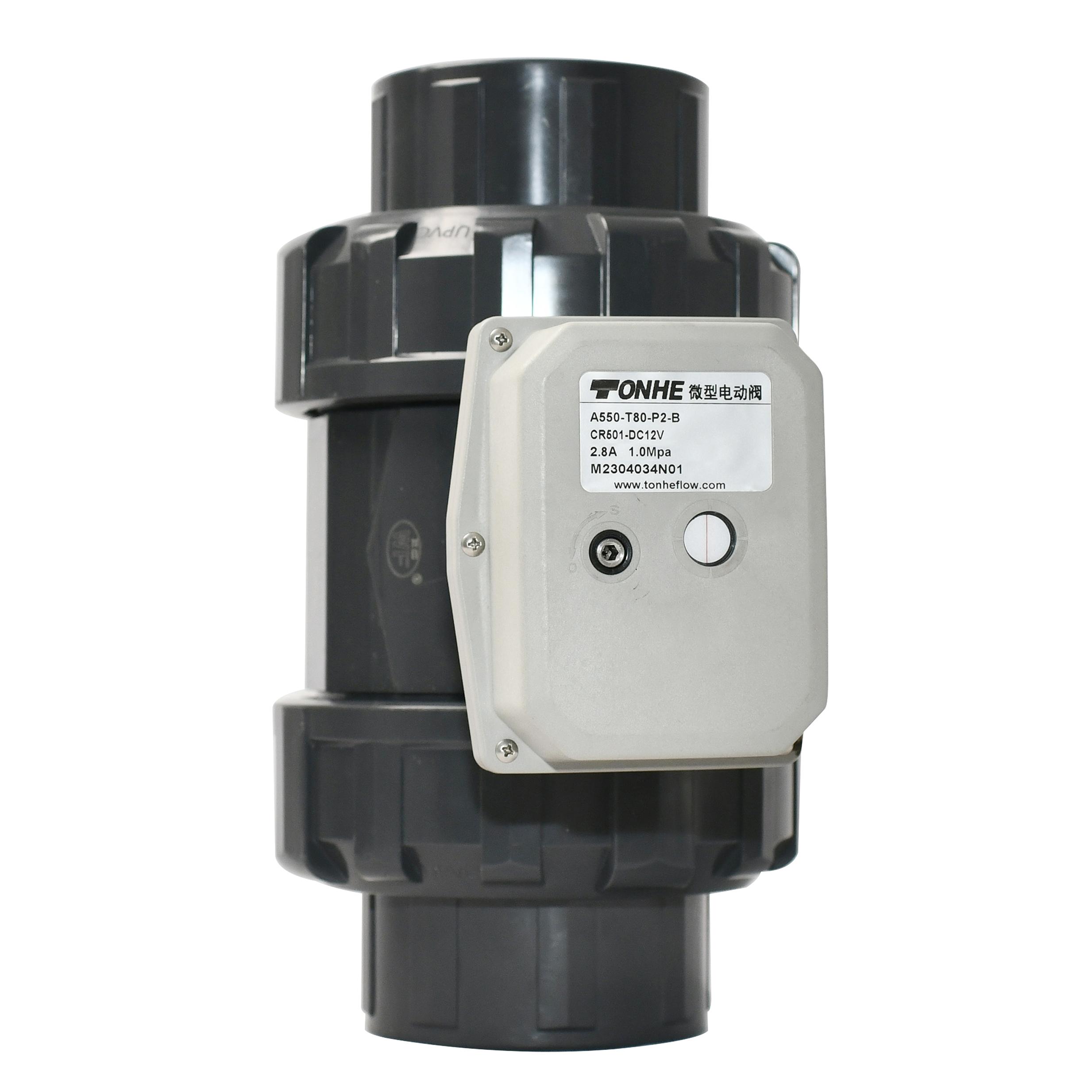

CR501 (5 Wires Control, With Feedback Signal)
1. Red connect with positive, Black connect with negative, valve CLOSE, maintain after fully closed, Yellow connect with White.
2. Black connect with positive, Red connect with negative, valve OPEN, maintain after fully open, Green connect with White.
* Suitable Working Voltage: DC5V, DC12V, DC24V
* Exceeding the working voltage is forbidden
* Feedback Signal Load Capacity: 0.3A 24VACDC (Resistive Load)
CR202 (2 Wires Control, Power Off Reset Function)
Normally Closed
1.Red connect with positive, Black connect with negative.
2.SW CLOSE, valve OPEN, maintain after fully open.
3.SW OPEN, valve CLOSE, maintain after fully closed.
Normally Open
1.Red connect with positive, Black connect with negative.
2.SW CLOSE, valve CLOSE, maintain after fully closed.
3.SW OPEN, valve OPEN, maintain after fully open.
* Suitable Working Voltage: AC/DC9-24V, AC/DC9-35V,AC/DC110-230V
* Exceeding the working voltage is forbidden
CR502 (5 Wires Control, Power Off Reset Function, With Feedback Signal)
Normally Closed
1. Red connect with positive, Black connect with negative.
2. SW CLOSE, valve OPEN, maintain after fully open, Green connect with White.
3. SW OPEN, valve CLOSE, maintain after fully closed, Yellow connect with White.
Normally Open
1. Red connect with positive, Black connect with negative.
2. SW CLOSE, valve CLOSE, maintain after fully closed, Yellow connect with White.
3. SW OPEN, valve OPEN, maintain after fully open, Green connect with White.
* Suitable Working Voltage: DC9-35V, DC9-60V, DC12-24V, AC24V, AC110-230V
* Exceeding the working voltage is forbidden
* Feedback Signal Load Capacity: 0.3A 24VACDC (Resistive Load)
CR602 (6 Wires Control, With Feedback Signal)
1. Red & Green connect with positive, Black connect with negative.
2. SW connect with Red, valve OPEN, maintain after fully open, Blue connect with White.
3. SW connect with Green, vave CLOSE, maintain after fully closed, Yellow connect with White.
* Suitable Working Voltage: DC5V, DC12V, DC24V, DC12-24V, AC/DC110-230V
* Exceeding the working voltage is forbidden
* Feedback Signal Load Capacity: 0.3A 24VACDC (Resistive Load)
CR603 (6 Wires Control, With Feedback Signal)
1. Red & Green connect with positive, Black connect with negative.
2. SW CLOSE, valve OPEN, maintain after fully open, Blue connect with White.
3. SW OPEN, valve CLOSE, maintain after fully closed, Yellow connect with White.
* Suitable Working Voltage: DC12V, DC24V, DC9-24V, AC/DC9-35V, AC110-230V
* Exceeding the working voltage is forbidden
* Feedback Signal Load Capacity: 0.3A 24VACDC (Resistive Load)
