1. Beautiful appearance, compact structure, high precision, large output torque, service life is not less than 70,000 times.
2. The actuator and valve can be assembled from multiple angles, which is convenient for users to allocate space.
3. Ball valve adopts floating soft seal structure, no drip leakage, suitable for heavy dirt and long-term no action occasions.
4. Protection grade IP67, can be used in relatively humid environment.

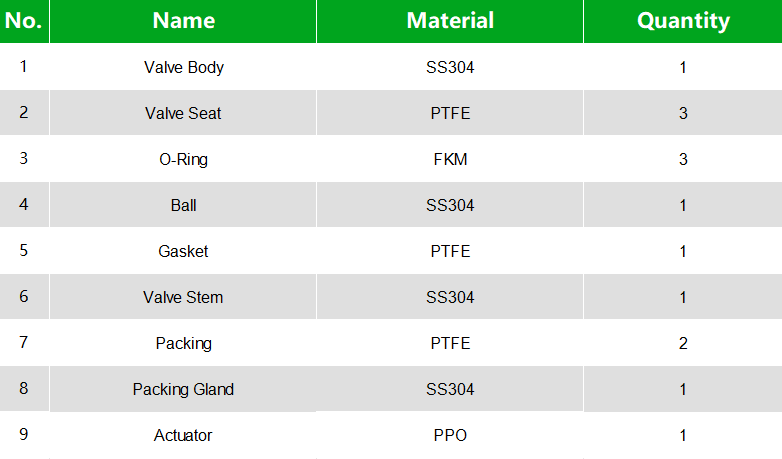

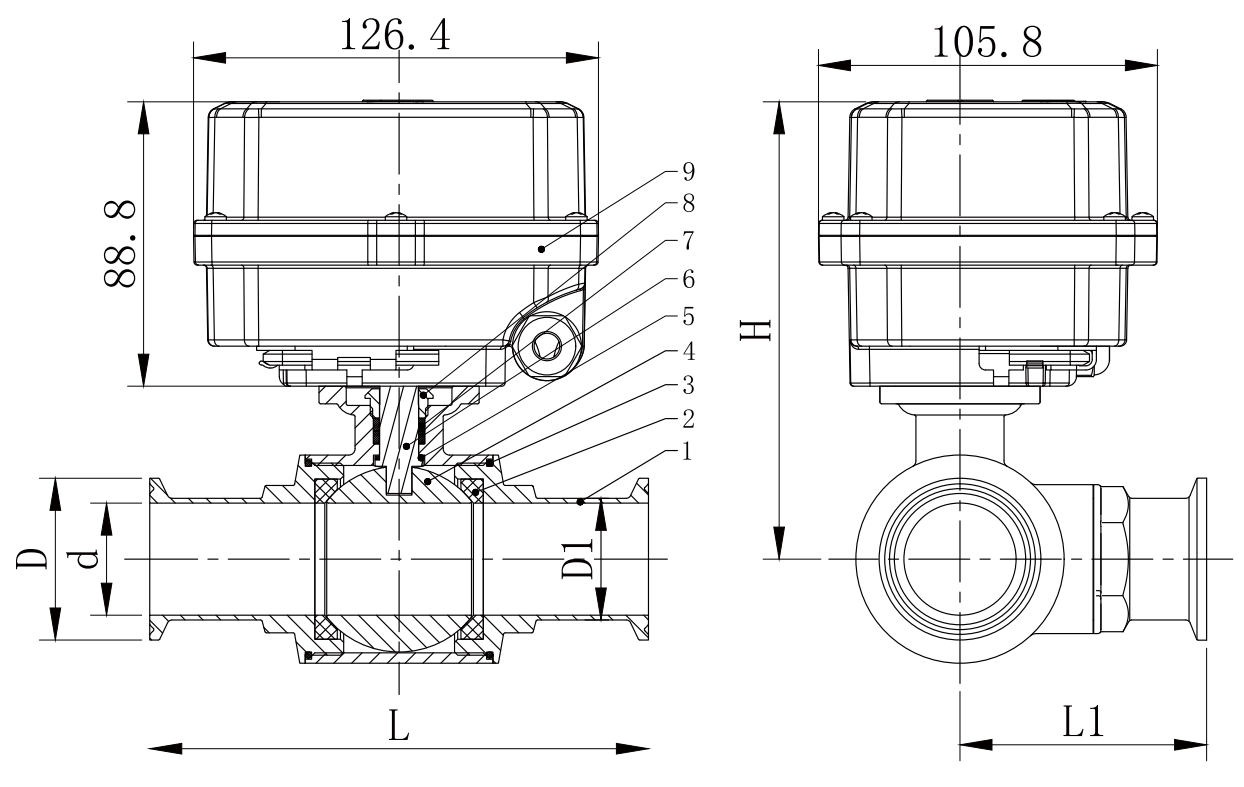

1.RD connect with positive, the BK connect with negative, the valve closed, the actuator automatically power off after in place, the valve remains fuly closed position.
2.BK connect with positive, the RD connect with negative, the valve open, the actuator automatically power off after in place,the valve remains fully open position.
*Suitable Working Voltage: DC5V,DC12V,DC24V
*Exceeding the working voltage is forbidden
1.Red & Green connect with positive, BK connect with negative.
2.When OPEN( Red ) & SW connected, the valve OPEN, the actuator automatically power off after in place, valve remains fully open position.
3.When CLOSE(Green) & SW connected, the valve CLOSED, the actuator automatically power off after in place, valve remains fully closed position.
*Suitable Working Voltage: DC5V,DC12V,DC24V,AC/DC9-24V
*Exceeding the working voltage is forbidden
1.Red & Green connect with positive, the BK connect with negative.
2.SW CLOSED, the valve OPEN, the actuator automatically power off after in place.
3.SW OPEN, the valve CLOSED, the actuator automatically power off after in place.
*Suitable Working Voltage: AC/DC9-24V,AC110-230V
*Exceeding the working voltage is forbidden
1.Red connect with positive, the Black connect with negative, the valve closed, the actuator automatically power off after in place.
2.Black connect with positive, the Red connect with negative, the valve open, the actuator automatically power off after in place.
3.Green & White connect with the valve's fully open signal wiring.
4.Yellow & White connect with the valve's fully closed signal wiring.
*Suitable Working Voltage:DC5V,DC12V,DC24V
*Exceeding the working voltage is forbidden
*Feedback signal load capacity:0.3A 24VAC/DC(resistive load)
1.When SW is closed, the valve OPEN. the actuator automatically power off after in place.
2.When SW is open, the valve CLOSED, the actuator automatically power off after in place.
*Suitable Working Voltage: AC/DC9-24V AC110-230V
*Exceeding the working voltage is forbidden
1.When SW is closed, the valve OPEN. the actuator automatically power off after in place.
2.When SW is open, the valve CLOSED, the actuator automatically power off after in place.
3.Green & White connect with the valve's fully open signal wiring.
4.Yellow & White connect with the valve's fully closed signal wiring.
*Suitable Working Voltage: AC/DC9-24V, AC/DC110V-230V
*Exceeding the working voltage is forbidden
*Feedback signal load capacity:0.3A 24VAC/DC(resistive load)
1.红线接电源正极，黑线接电源负极，
2.绿线接4-20mA信号输入正极，蓝线接4-20mA信号输入负极;
3.白线接4-20mA信号输出正极，蓝线接4-20mA信号输出负极;
4.输入20mA顺时针转，阀门全开；输入4mA逆时针转，阀门全闭；
l 电压选配： £ DC12-24V
l 不得超过电压工作
