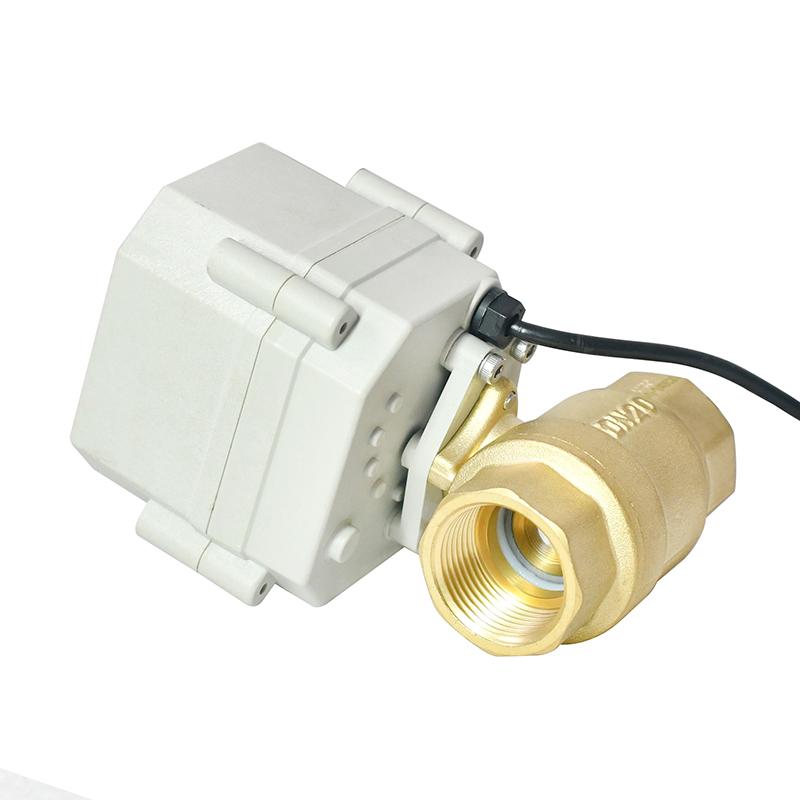

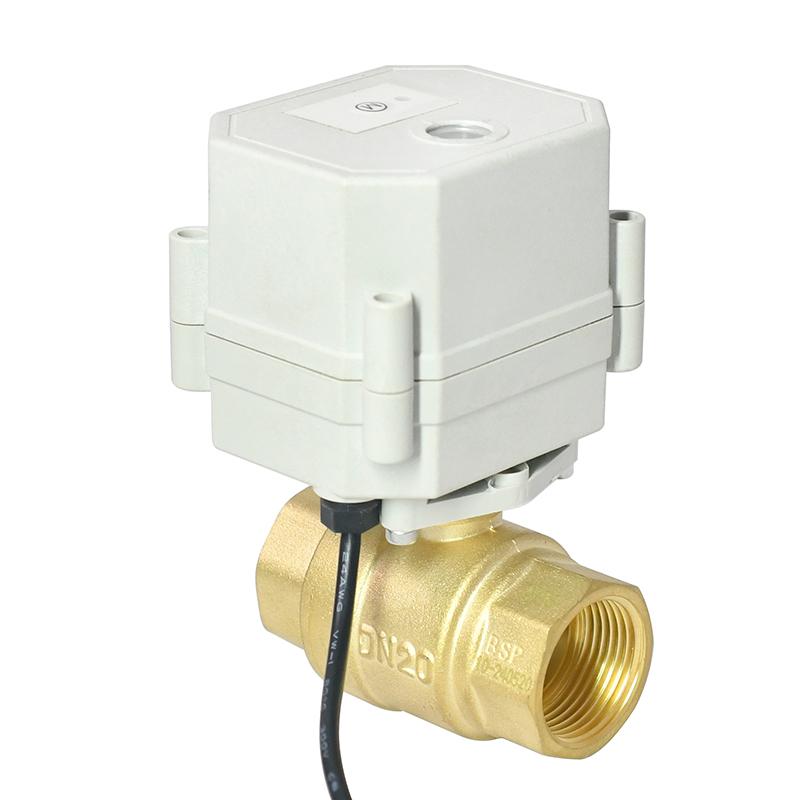

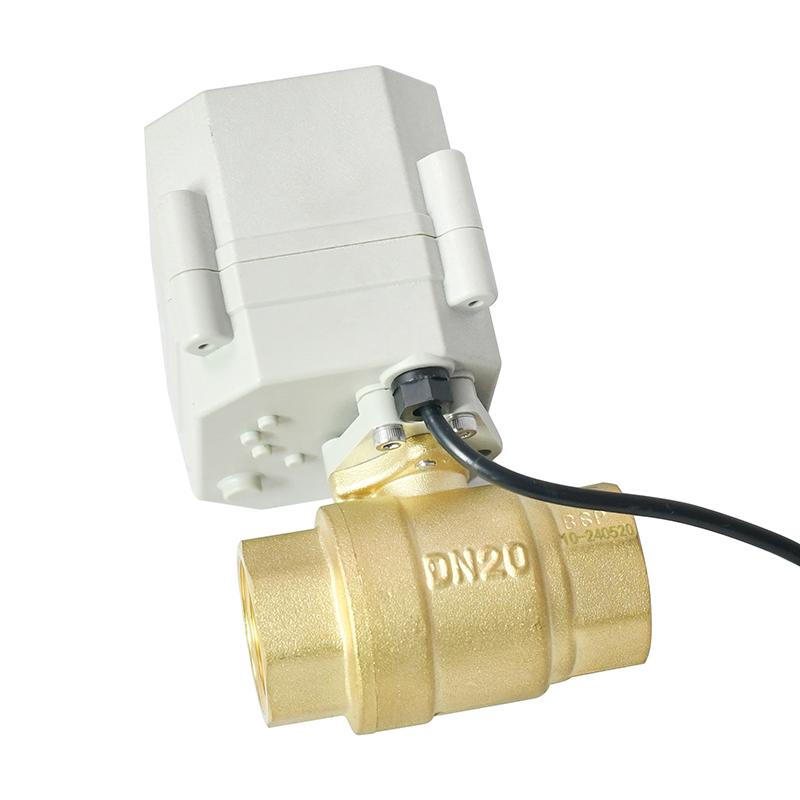

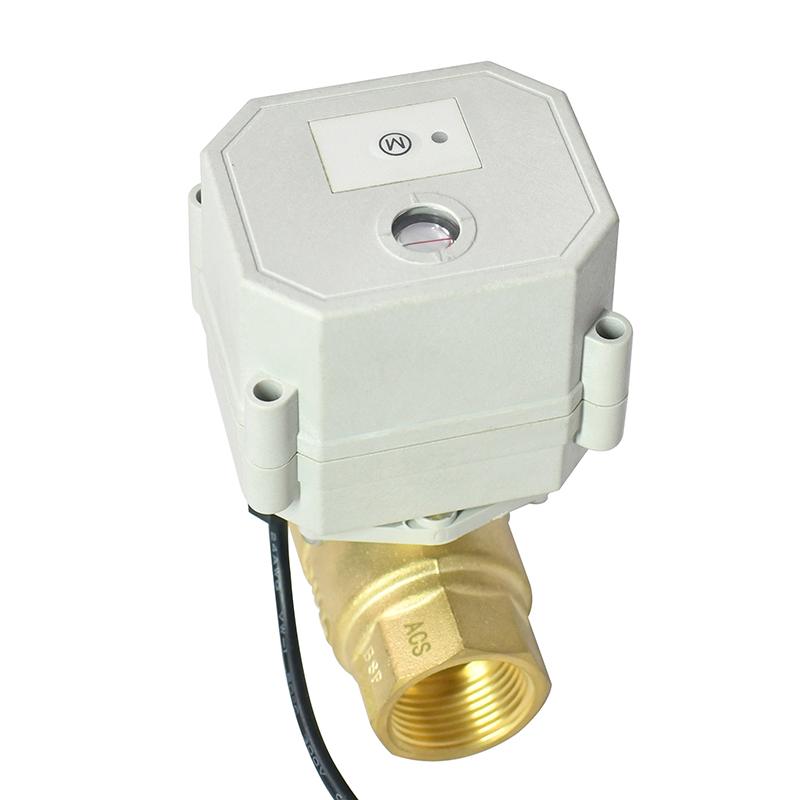

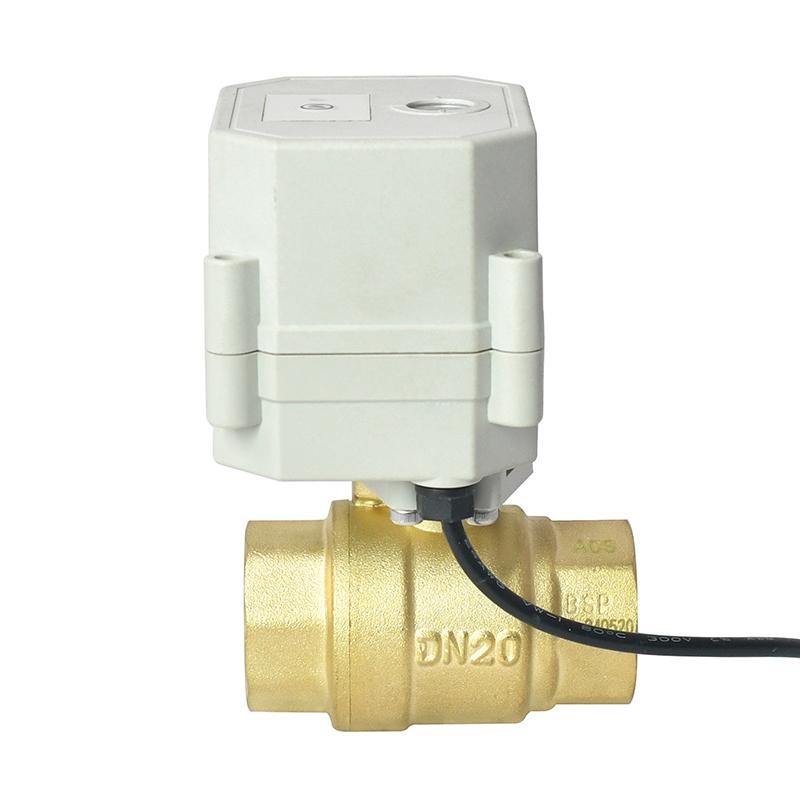

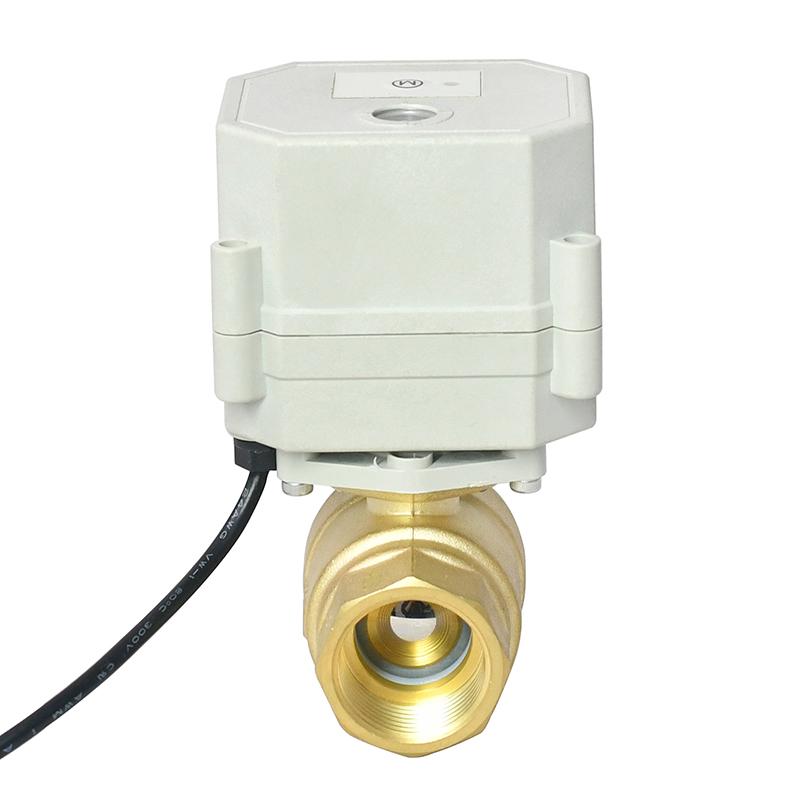

DN20 2 Way Brass Wi-Fi Electric Ball Valve
A20-W20-B2-CH

TONHEFLOW | A20 Series Wi-Fi Electric Ball

Through the mobile phone APP, freely set the "scheduled tasks" of the valve

1. Specified time:The irrigation valve is automatically opened at 7 a.m. to replenish water for

the plants on time.

2. Opening and closing Angle:Set the valve to open at any Angle from 0 to 100% to control the water flow and avoid waste.

3. Cycle Plan:Once in the morning and once in the evening on weekdays, flexibly matching

the pace of life.

Whether it is household water conservation or agricultural irrigation, the TONHEFLOW A20 series Wi-Fi valve enables "one-click operation"

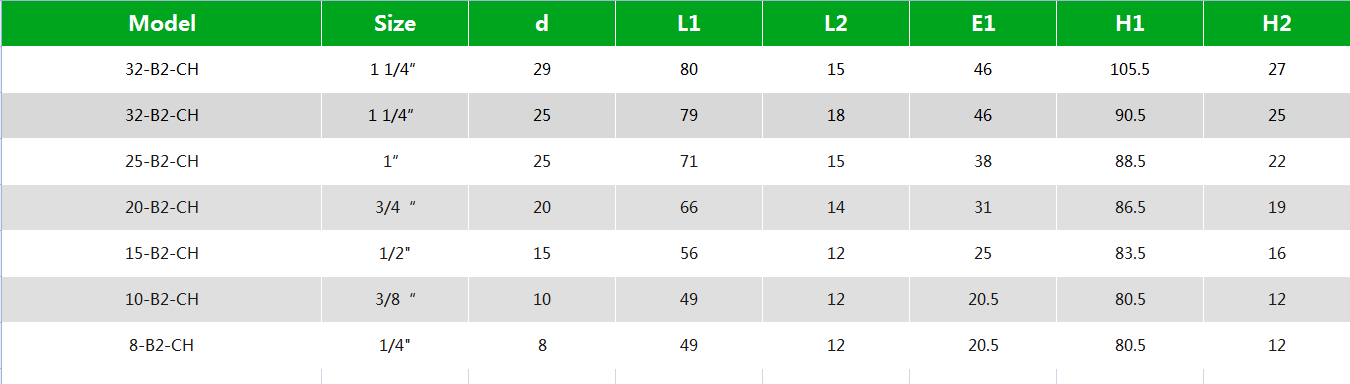

Product model
Installation
Mobile View
Technical parameters
Valve size
BSP/NPT 1/4” 3/8” 1/2” 3/4” 1” 1 1/4” (Optional)
Maximum working pressure
1.0MPa
Circulation medium
Fluid、air
Working voltage
DC5-12V
Wiring diagram
WIFI “Smart Life” APP
Working current
≤500mA
Openiclose time
≤10S
Life time
70000times
Valve body material
Brass(SS304,SS316,Nickel plated brass,Optional)
Actuator material
PPO
Actuator rotation
90°
Torque force
3N.m
Environment temperature
-15-55℃
Liquid temperature
2-90℃
Manual override
No

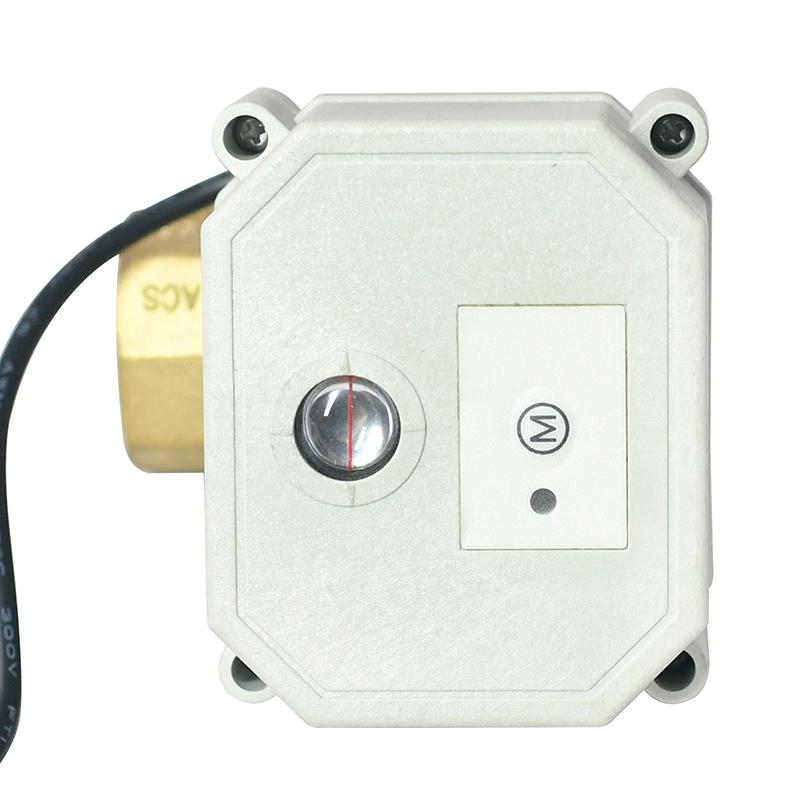

Open/close indicator
Yes
Protection class
IP67

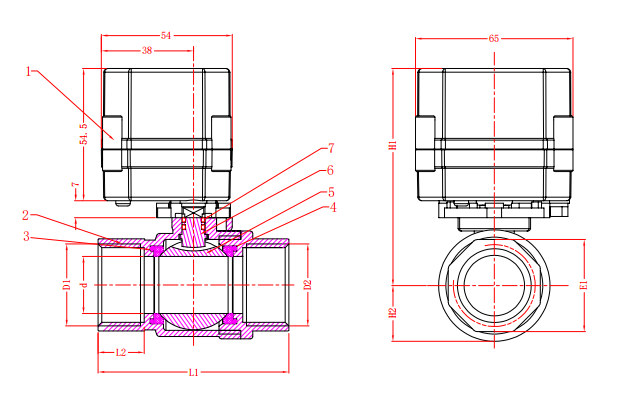

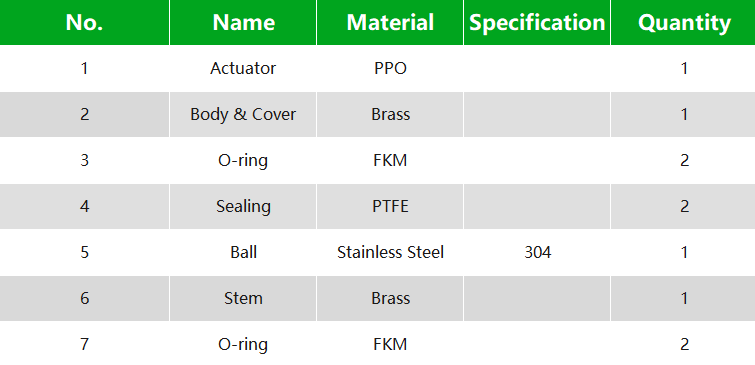

The assembly diagram
The wiring diagram
