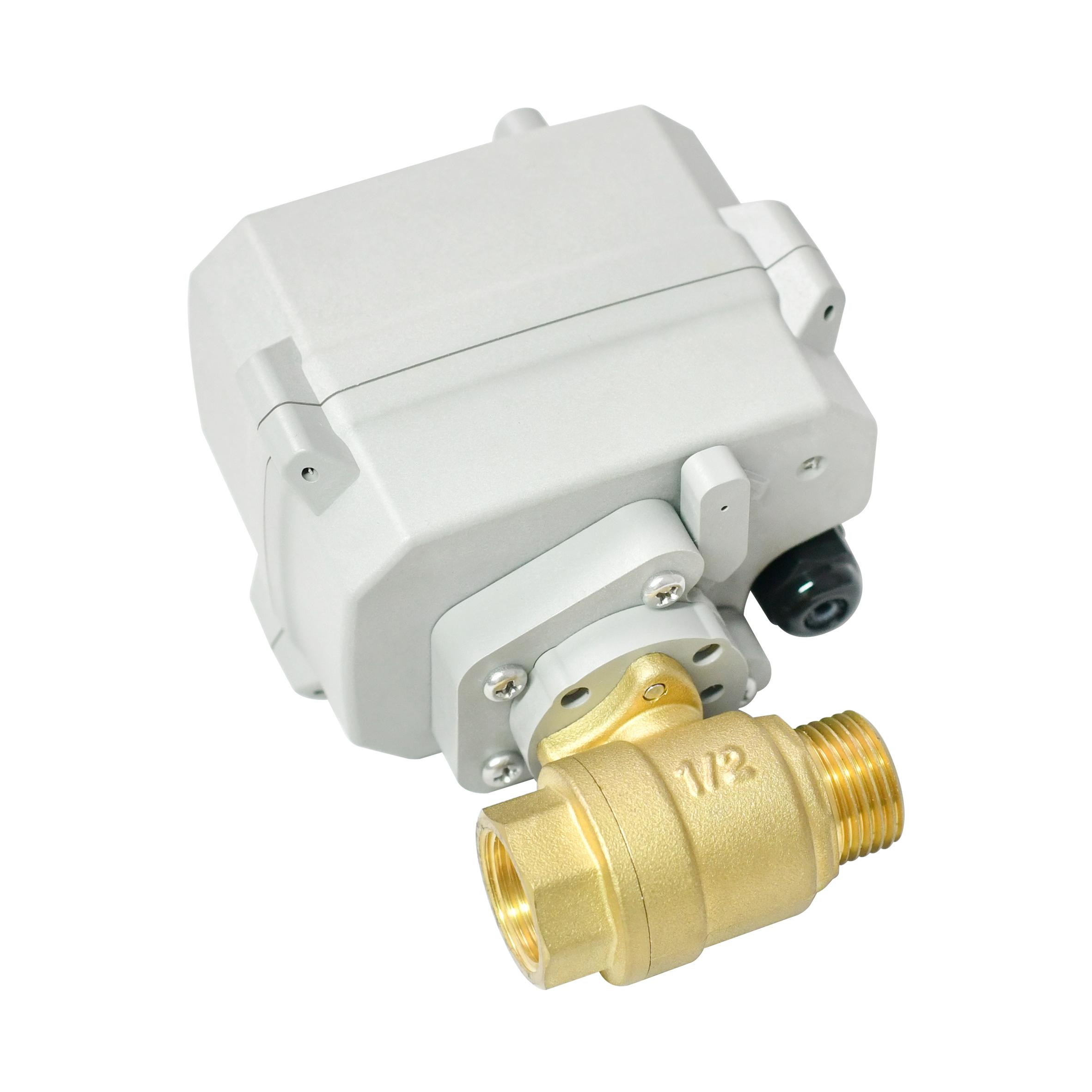

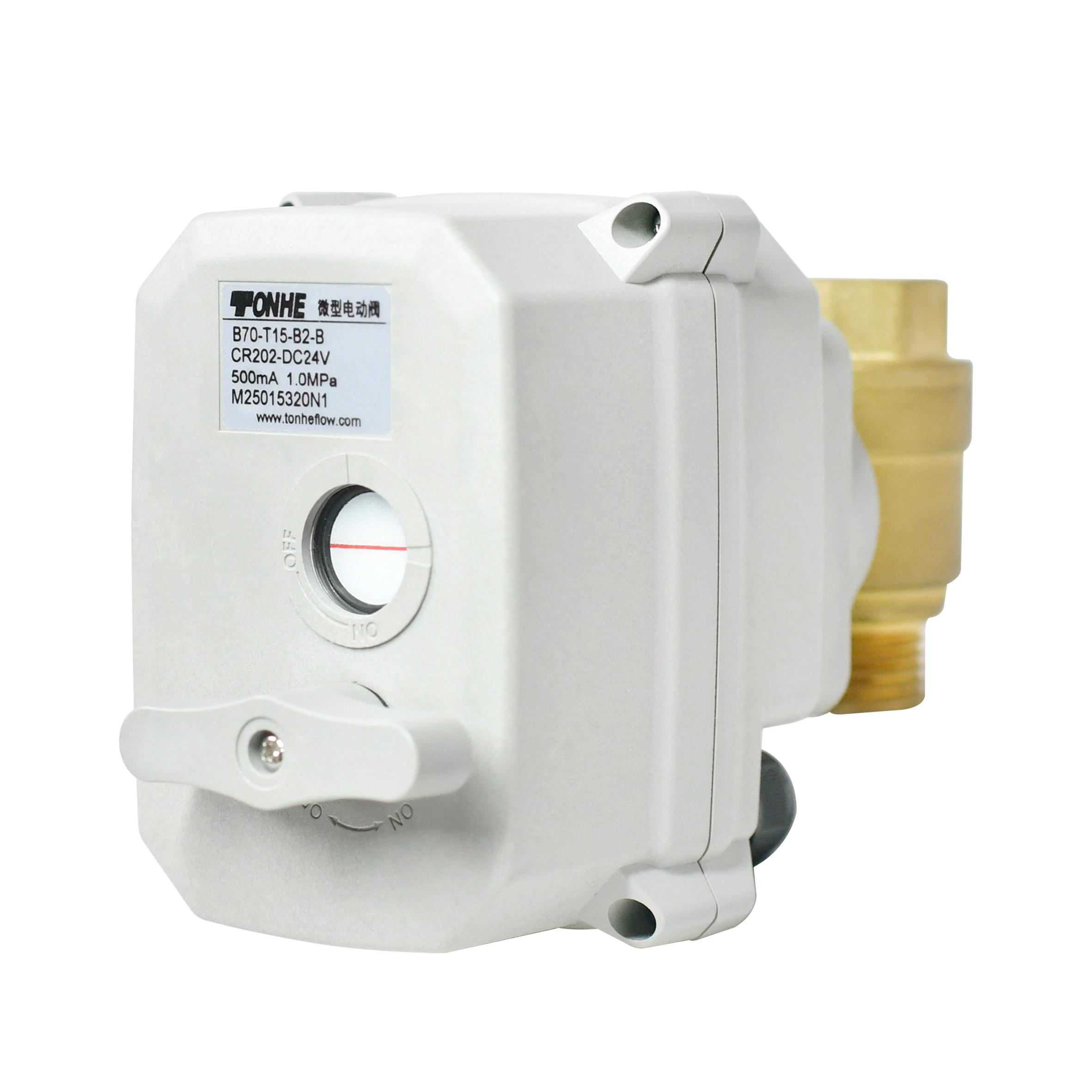

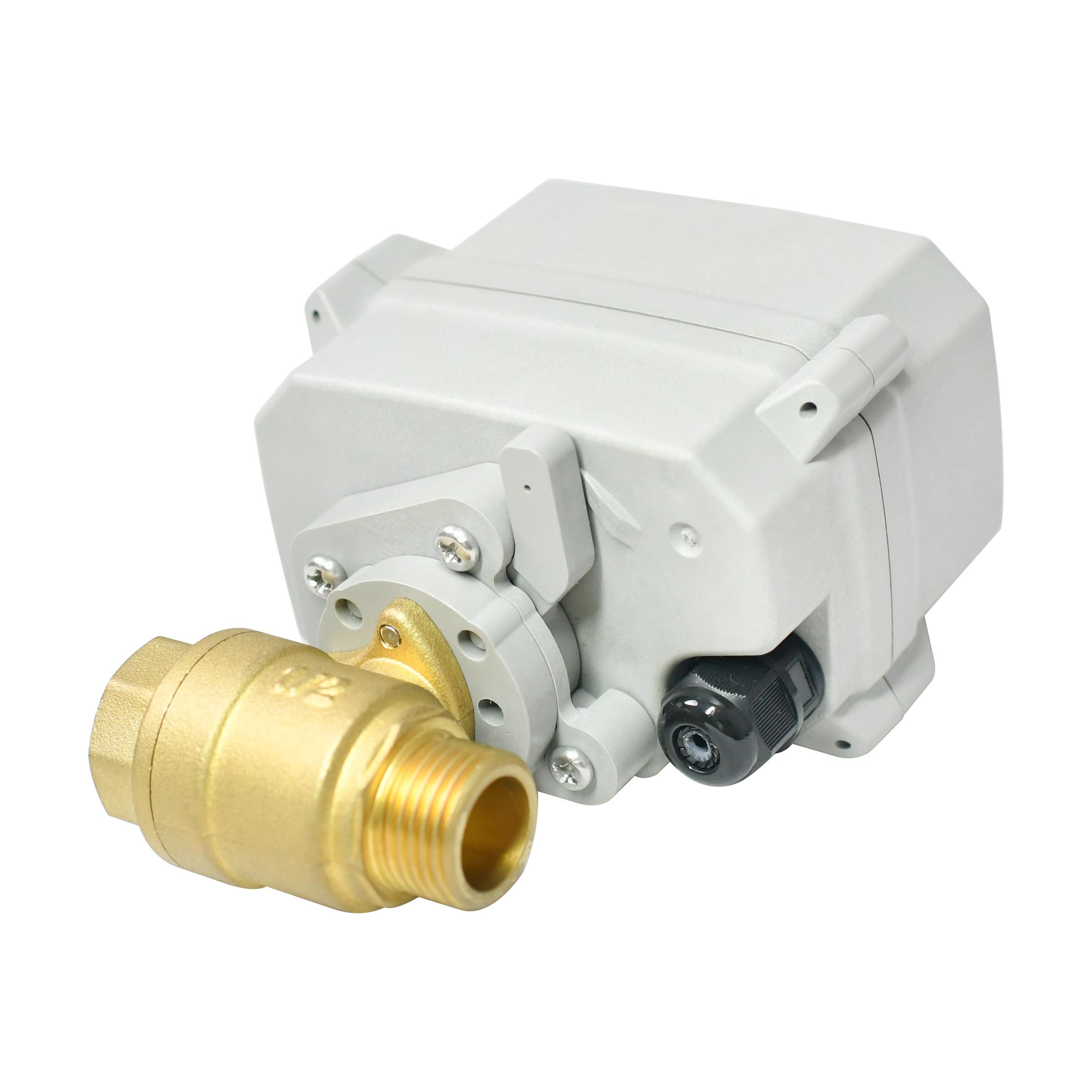

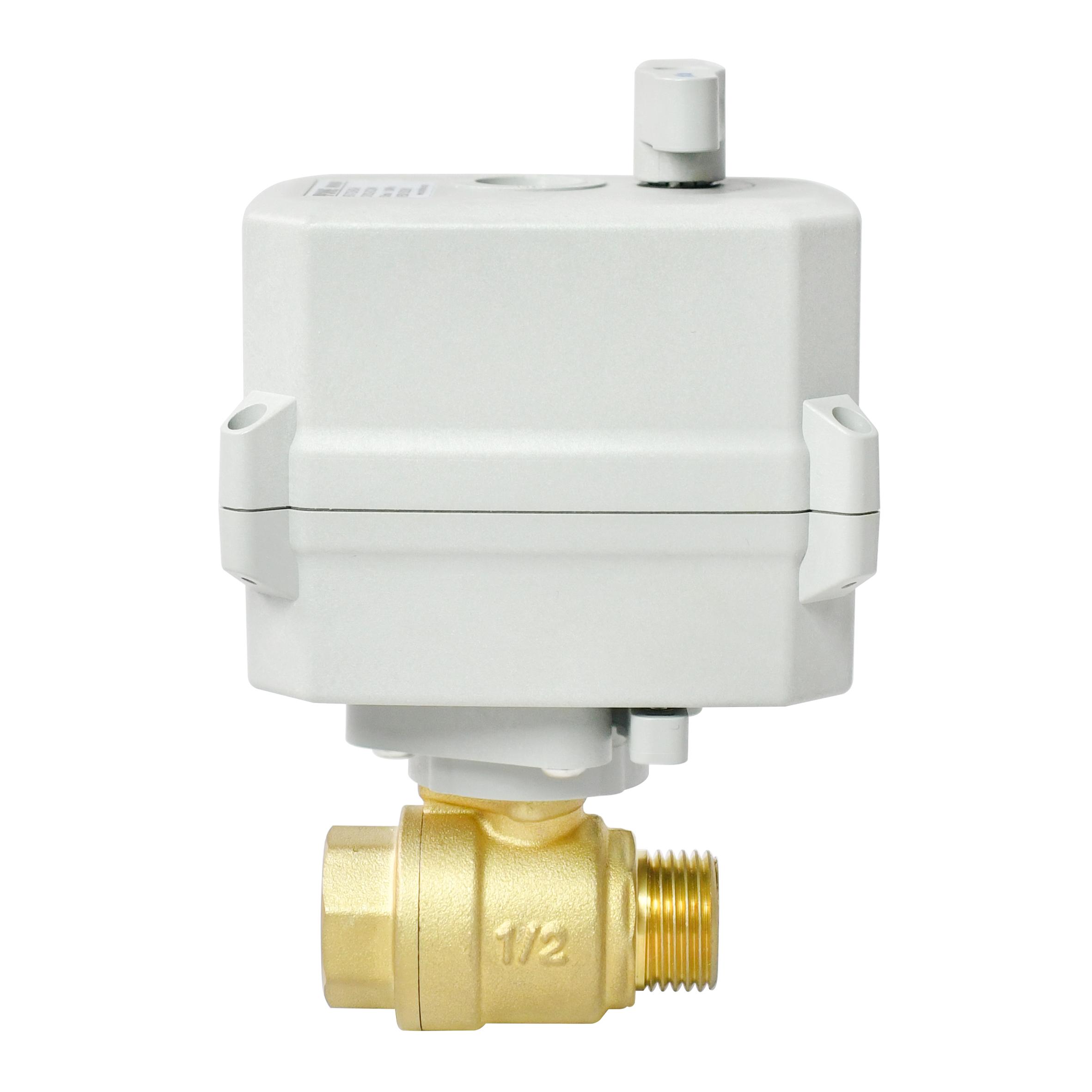

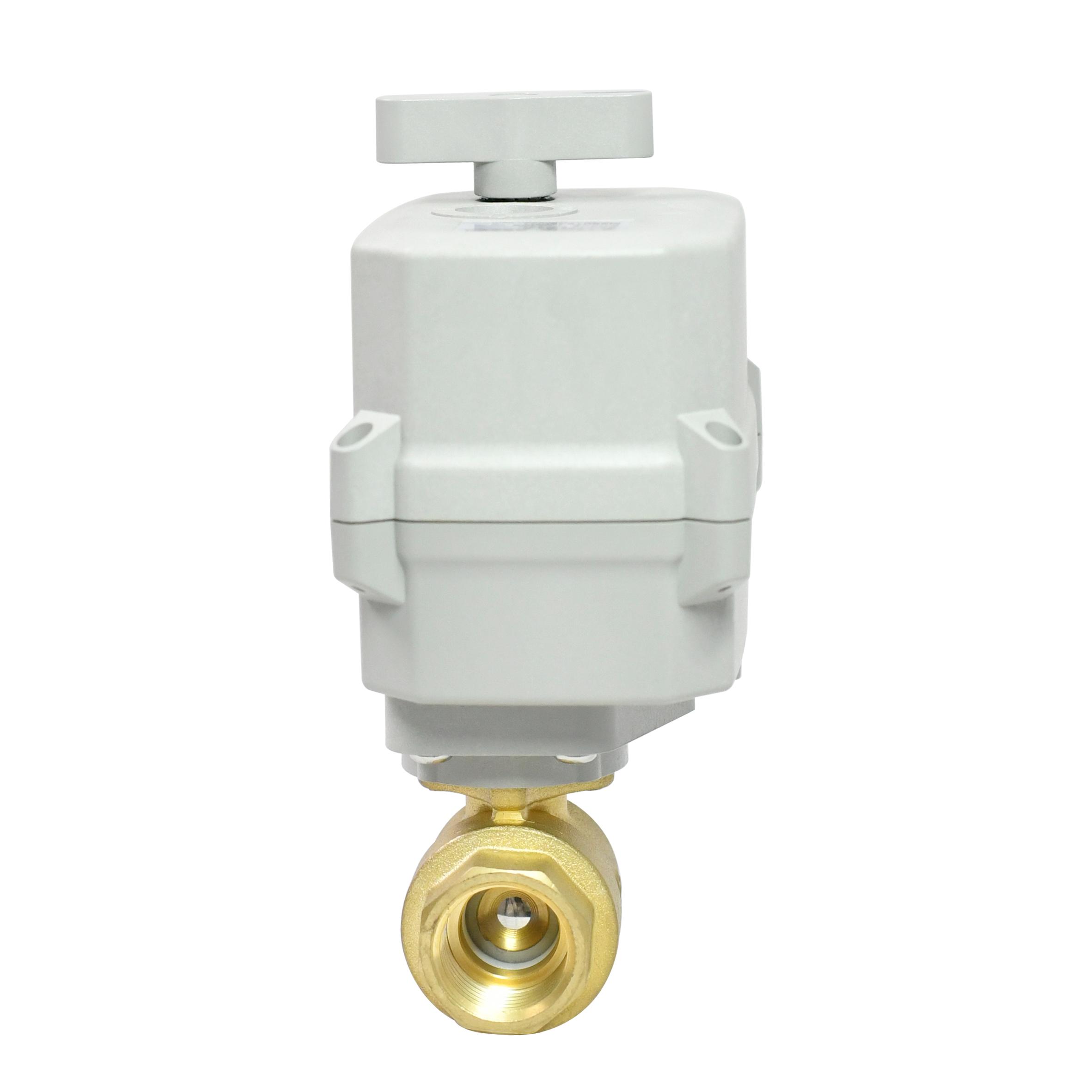

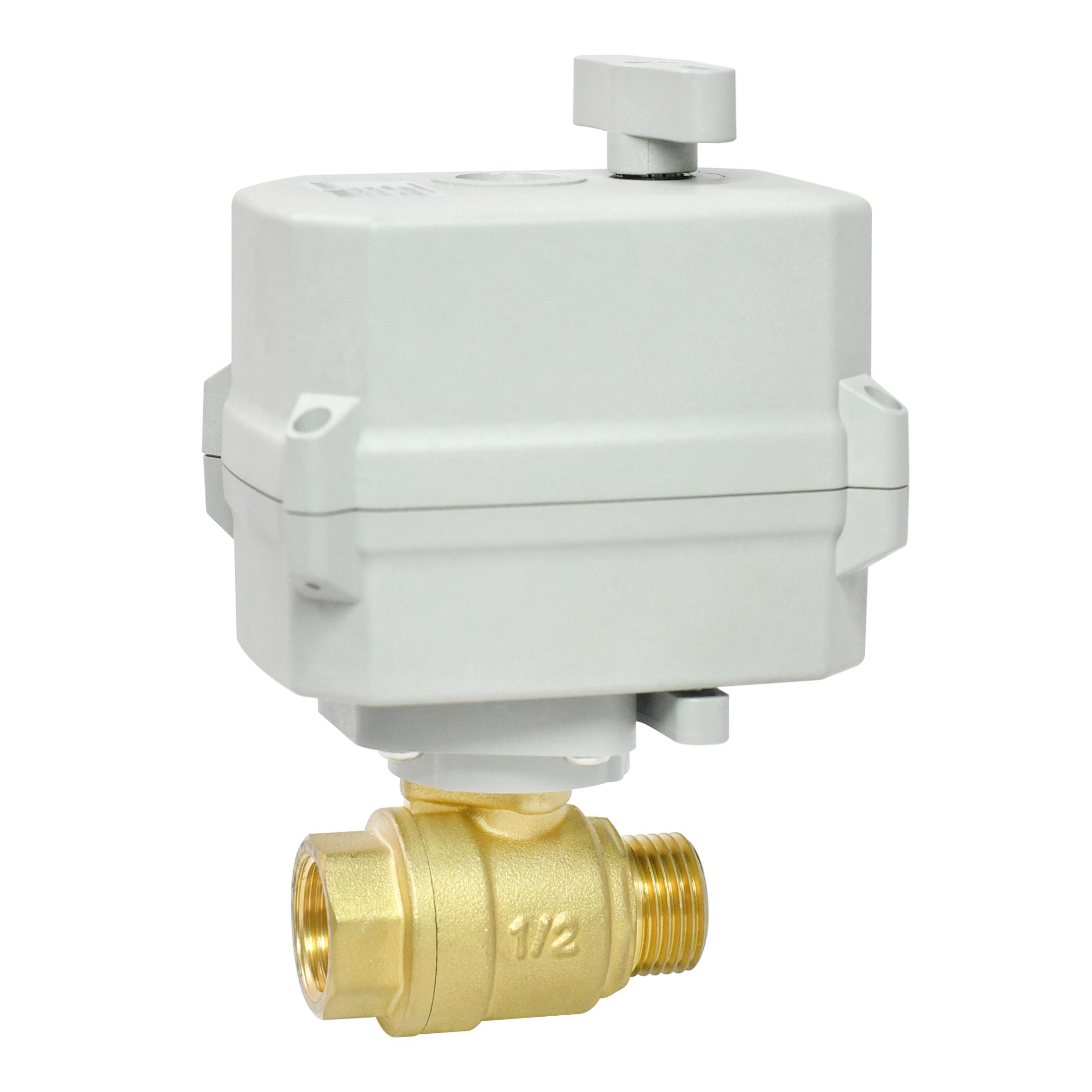

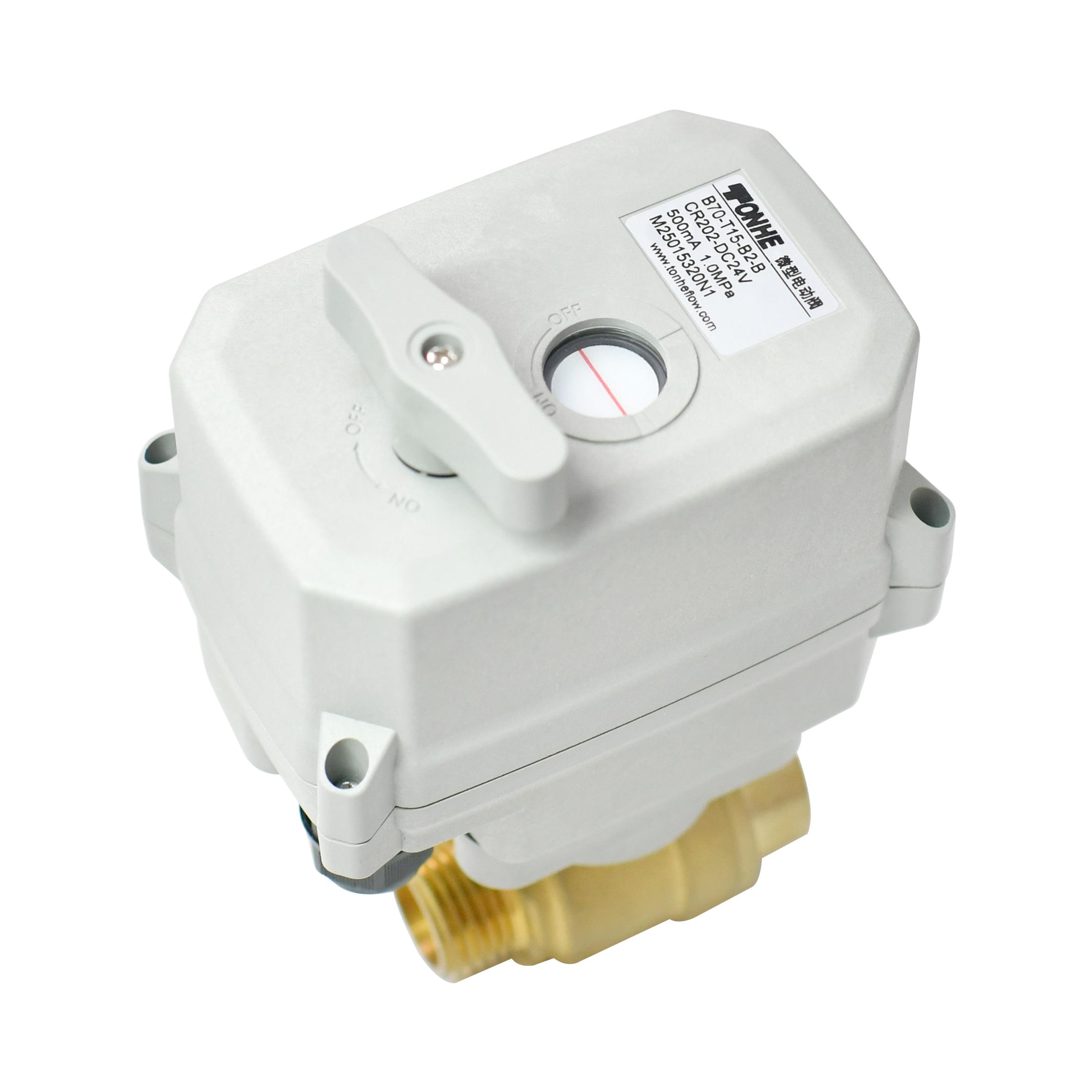

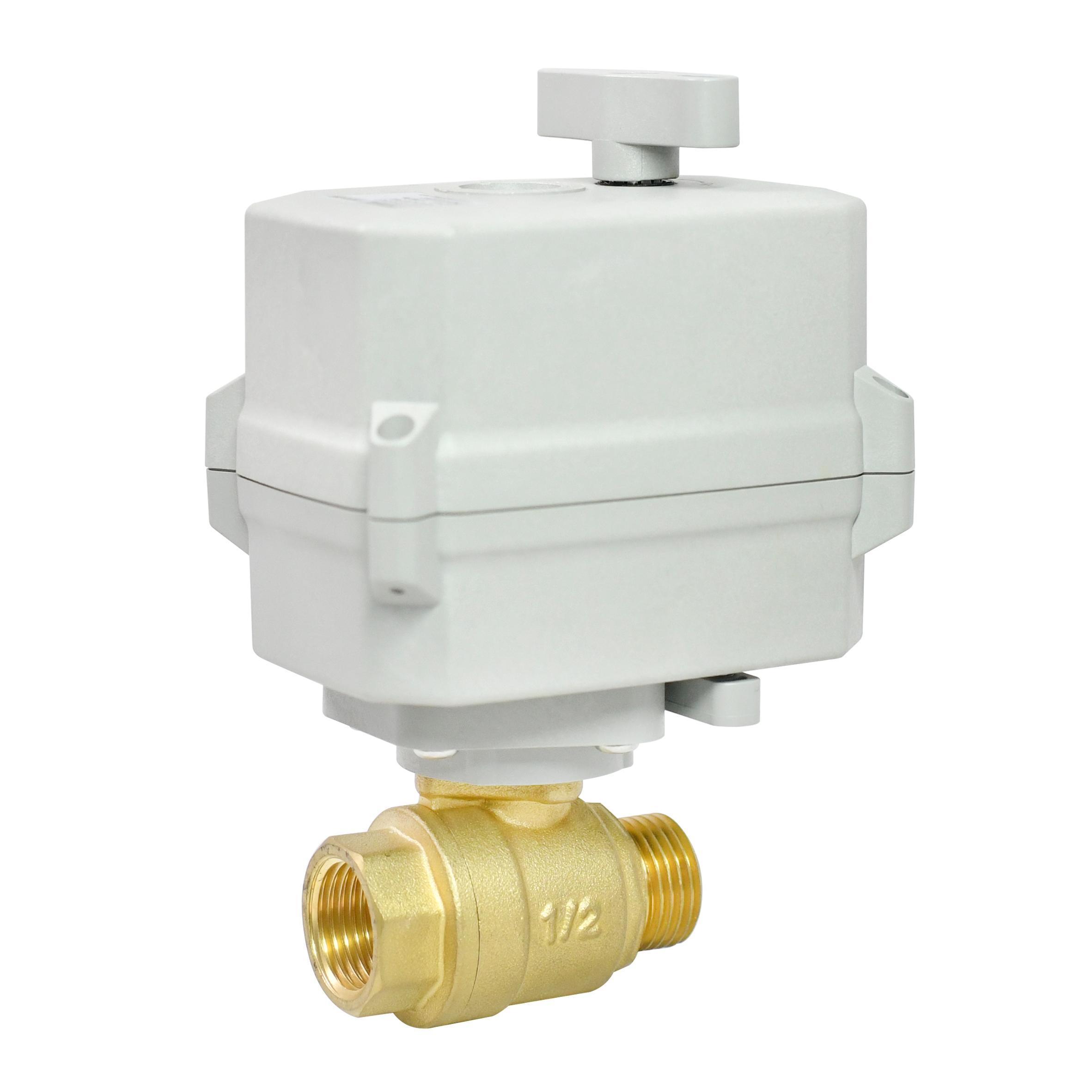

2 Sec Fast 1/2'' Brass 2-Way Motorized Ball Valve With Female And Male Thread

B70-T15-B2-B

1. Beautiful appearance, compact structure, high precision, large output torque, service life is not less than 70,000 times.

2. The actuator and valve can be assembled from multiple angles, which is convenient for users to allocate space.

3. Ball valve adopts floating soft seal structure, no drip leakage, suitable for heavy dirt and long-term no action occasions.

4. Protection grade IP67, can be used in relatively humid environment.

Customer feedback

Technical parameters

Valve size

BSP 1/2” 3/4” 1”1 1/4” （Optional）

Maximum working pressure

1.0MPa

Circulation medium

Fluid、air

Working voltage

DC12-24V AC24V (Optional )

Wiring diagram

CR202 CR402 CR502 (Optional )

Openiclose time

≤3S

Life time

70000times

Valve body material

Brass（SS304，SS316，Optional）

Actuator material

PPO

Actuator rotation

90°

Torque force

7N.m

Cable length

0.5M 1.5M

Environment temperature

-15-60℃

Liquid temperature

2-90℃

Manual override

Yes

Open/close indicator

Yes

Output axis specification

3.5mm

The assembly diagram

The wiring diagram

CR202 (2 Wires Control, Power Off Reset Function)

Normally Closed

1.Red connect with positive, Black connect with negative.

2.SW CLOSE, valve OPEN, maintain after fully open.

3.SW OPEN, valve CLOSE, maintain after fully closed.

Normally Open

1.Red connect with positive, Black connect with negative.

2.SW CLOSE, valve CLOSE, maintain after fully closed.

3.SW OPEN, valve OPEN, maintain after fully open.

* Suitable Working Voltage: AC/DC9-24V, AC/DC9-35V,AC/DC110-230V

* Exceeding the working voltage is forbidden

CR502 (5 Wires Control, Power Off Reset Function, With Feedback Signal)

Normally Closed

1. Red connect with positive, Black connect with negative.

2. SW CLOSE, valve OPEN, maintain after fully open, Green connect with White.

3. SW OPEN, valve CLOSE, maintain after fully closed, Yellow connect with White.

Normally Open

1. Red connect with positive, Black connect with negative.

2. SW CLOSE, valve CLOSE, maintain after fully closed, Yellow connect with White.

3. SW OPEN, valve OPEN, maintain after fully open, Green connect with White.

* Suitable Working Voltage: DC9-35V, DC9-60V, DC12-24V, AC24V, AC110-230V

* Exceeding the working voltage is forbidden

* Feedback Signal Load Capacity: 0.3A 24VACDC (Resistive Load)

常闭型

1、红线接正极，黑线接负极；

2、开关闭合，阀门打开，开阀到位后保持，绿线和黄线接通；

3、开关断开，阀门关闭，关阀到位后保持，无反馈信号；

● 电压选配： DC12-24V AC24V

● 不得超过电压工作

● 反馈信号负载能力：0.3A 24VACDC(阻性负载).
