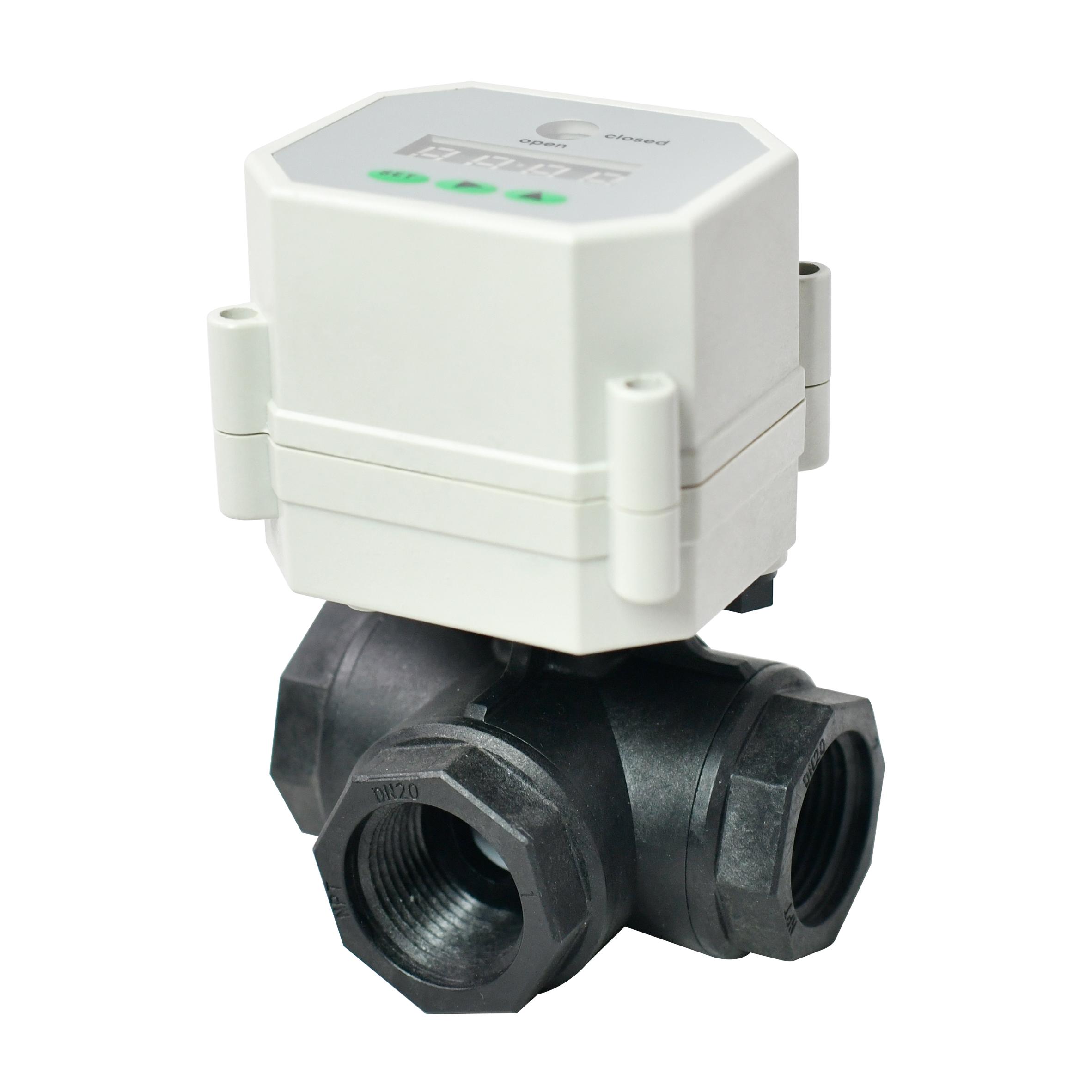

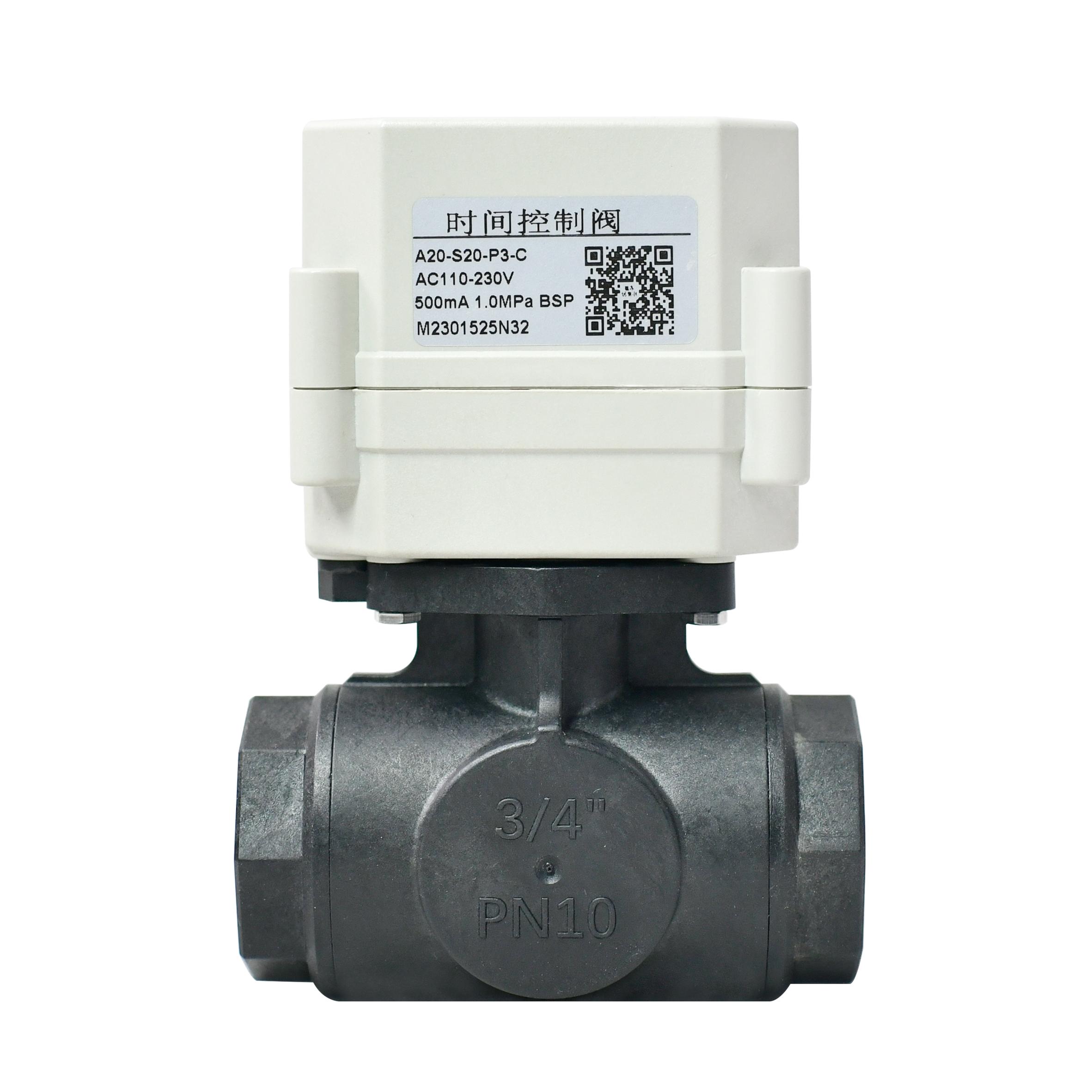

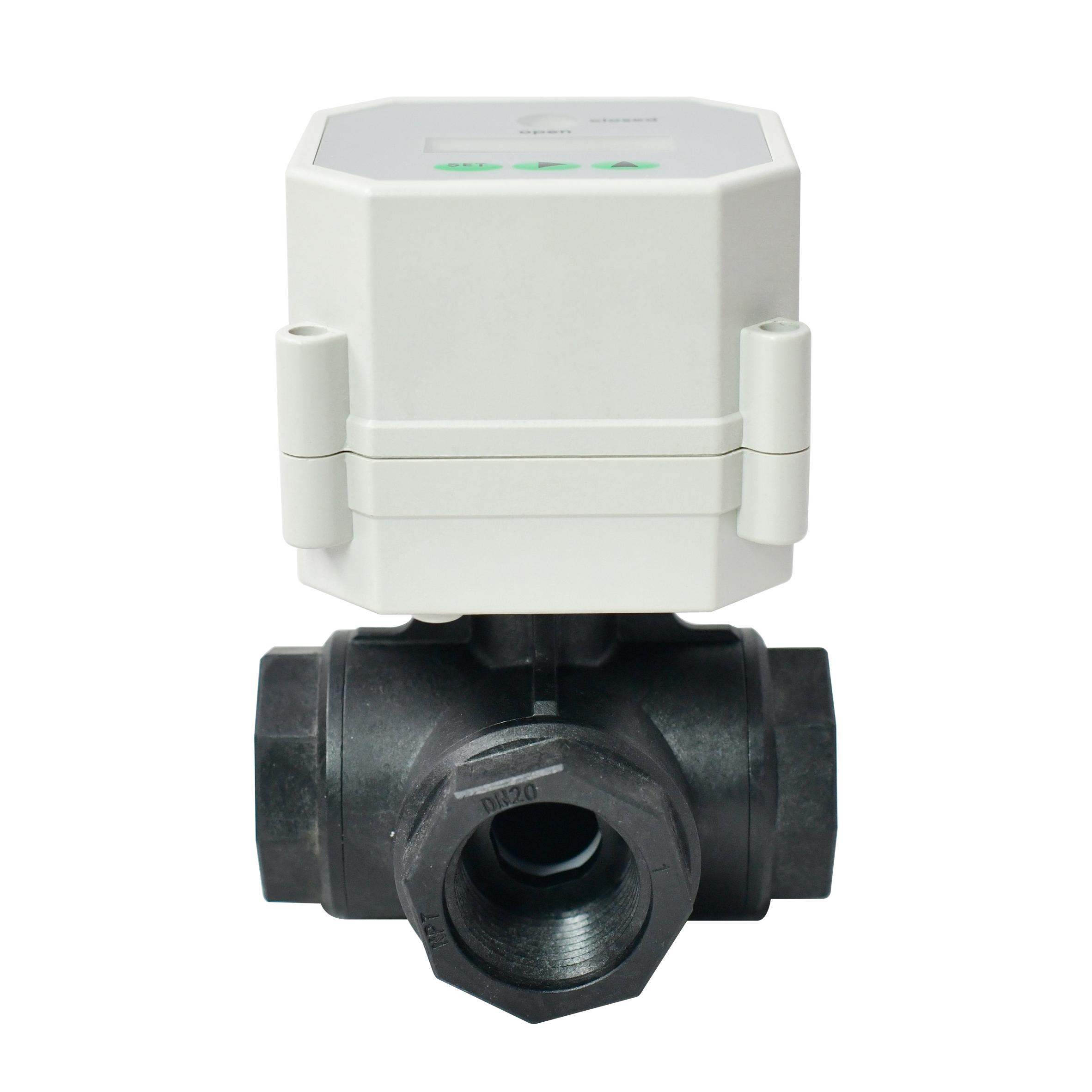

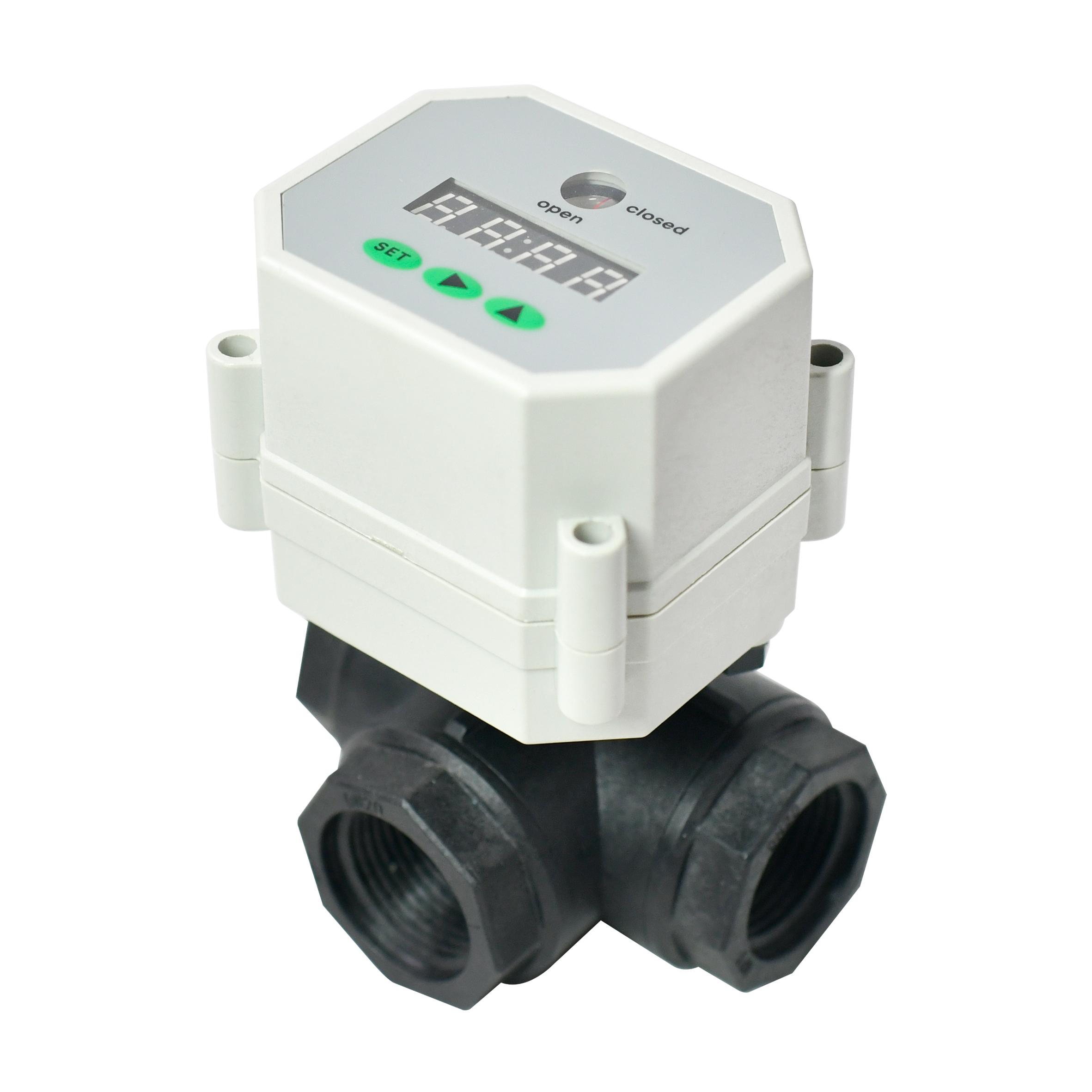

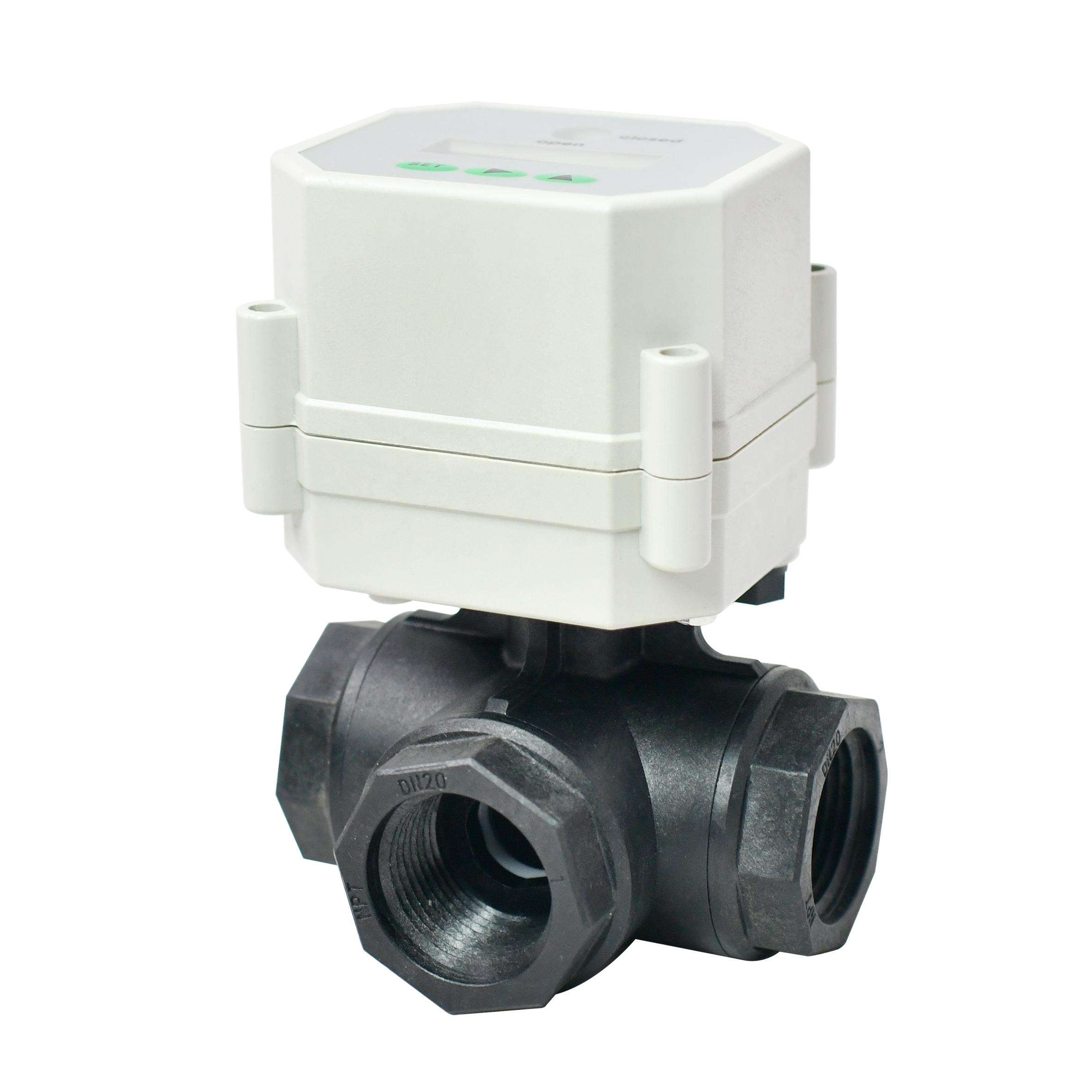

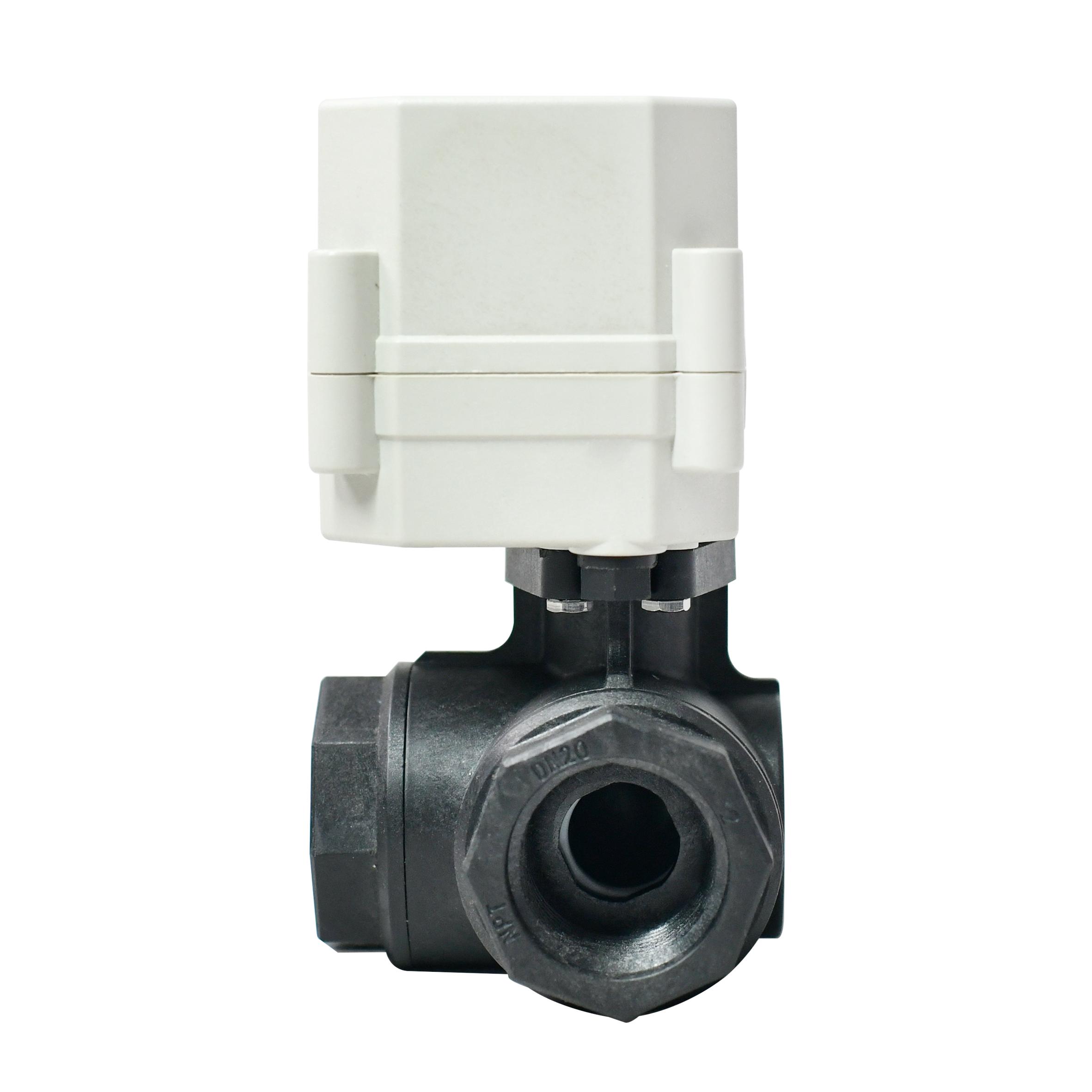

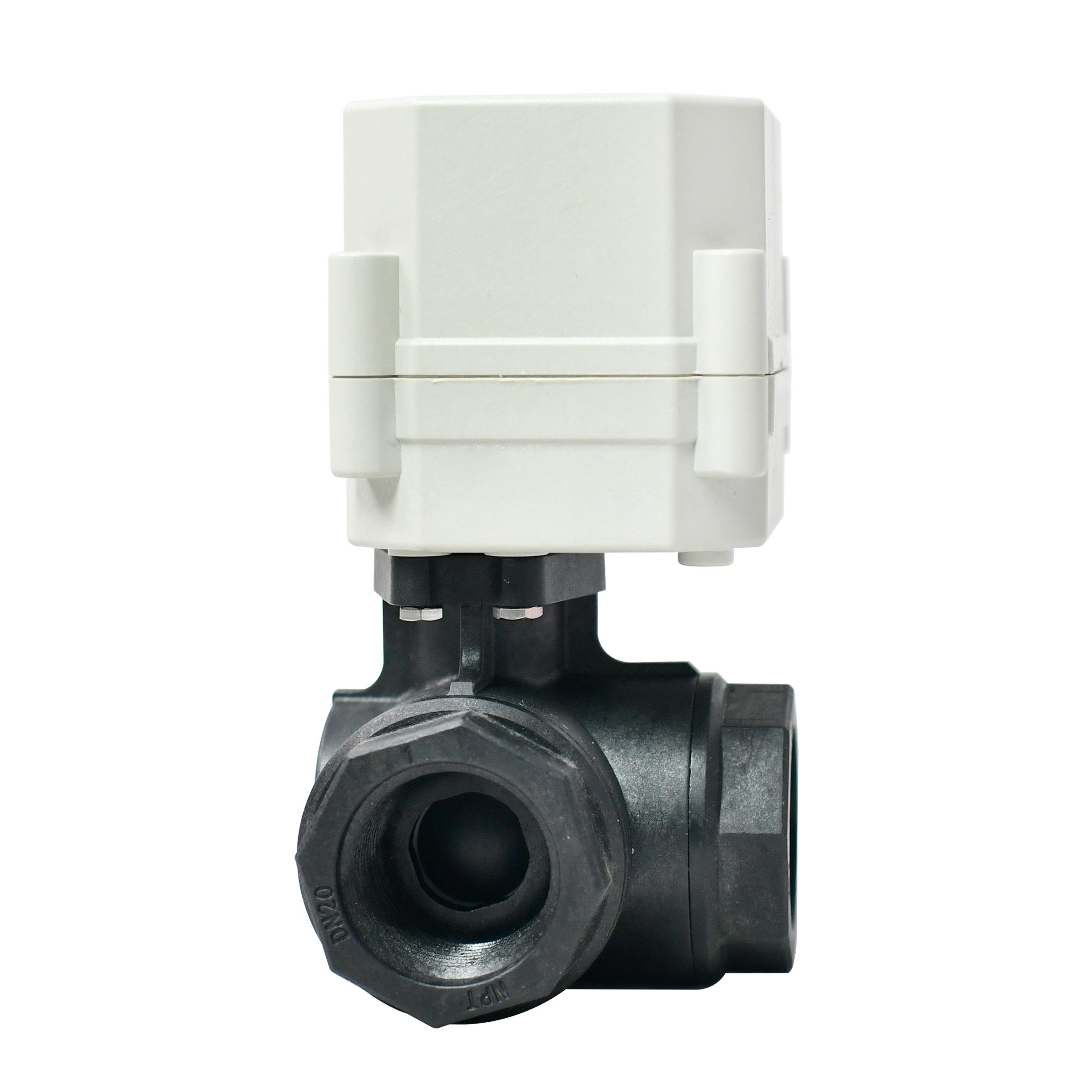

Tonheflow 3 Way Valve DN20 PPO Motorized Electric Ball Valve for Timer Drain Flo
A20-S20-P3-C

This is a patented valves used for controlling time in the area of water systems,energy saving and agricultural applications.

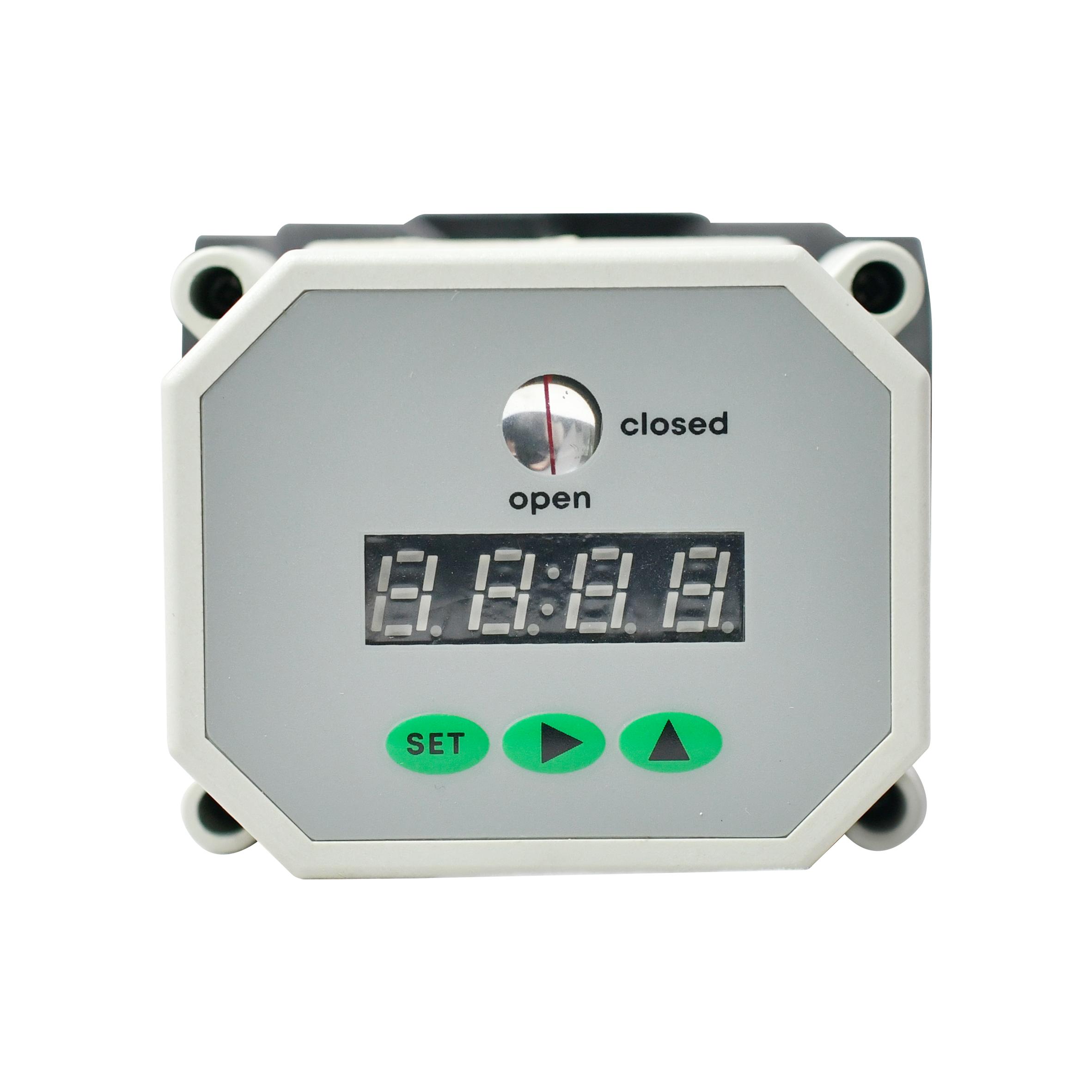

There are 2 types of time control valves, one is to setting open and close time frame called 99 hours time control valve, the other is to setting open and close point-in-time called 24hours time control valve.


Working voltage can be 9-24VAC/DC and 110-230VAC.

Customer feedback
Product model
Installation
Mobile View
Technical parameters
Valve Size
NPT/BSP 3/4''
Max.Working Pressure
1.0MPa
Media
Fluid
Running Time
Air
Working Voltage
≤8s
Opening Time range
AC/DC9-24V AC/DC110-230V
Closing Time range
00:00:00~99:59:59s
Working Current
00:00:00~99:59:59s
Life Time
≤500mA
Valve Body
70，000 times
Actuator
PPO
Sealing
PPO
Actuator Rotation
FKM&PTFE
Torque
90°
Cable
3Nm
Ambient Temperature
-15~50℃
Liquid Temperature
2~90℃
Manual Override
No
Indication
Yes
Protection Level
IP67

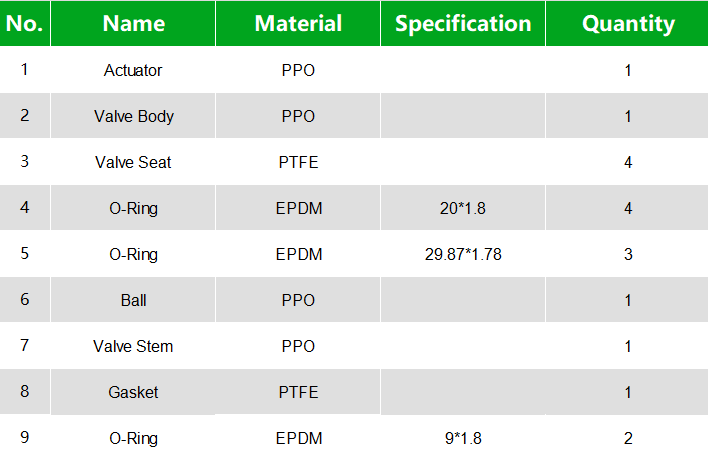

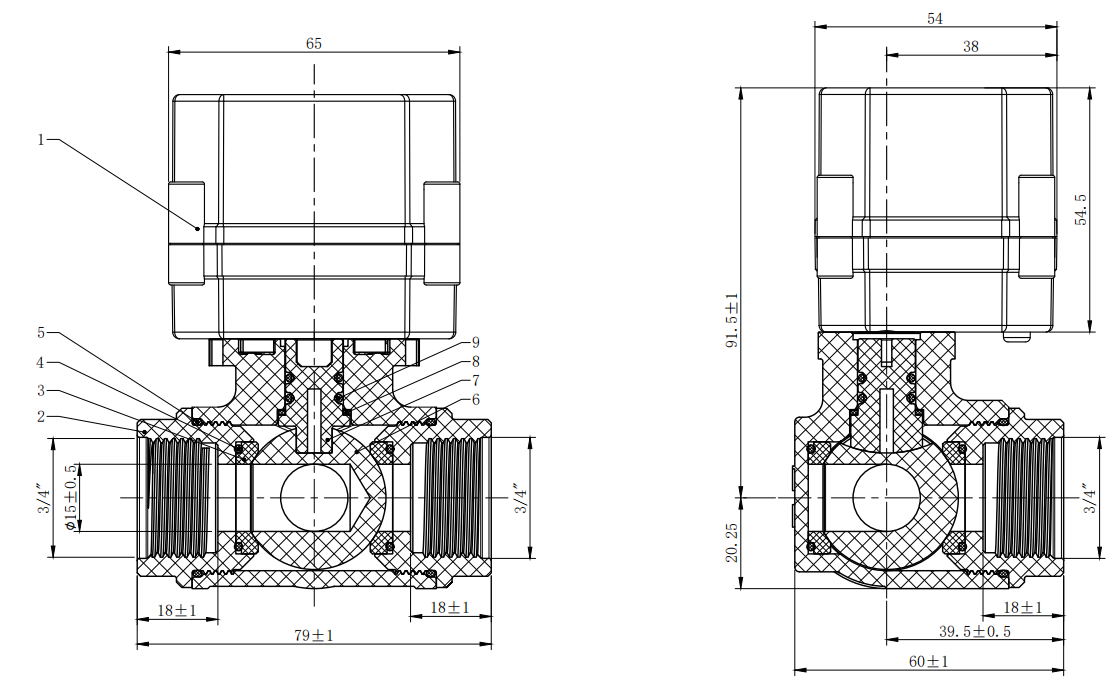

The assembly diagram
The wiring diagram
Tutorial video
