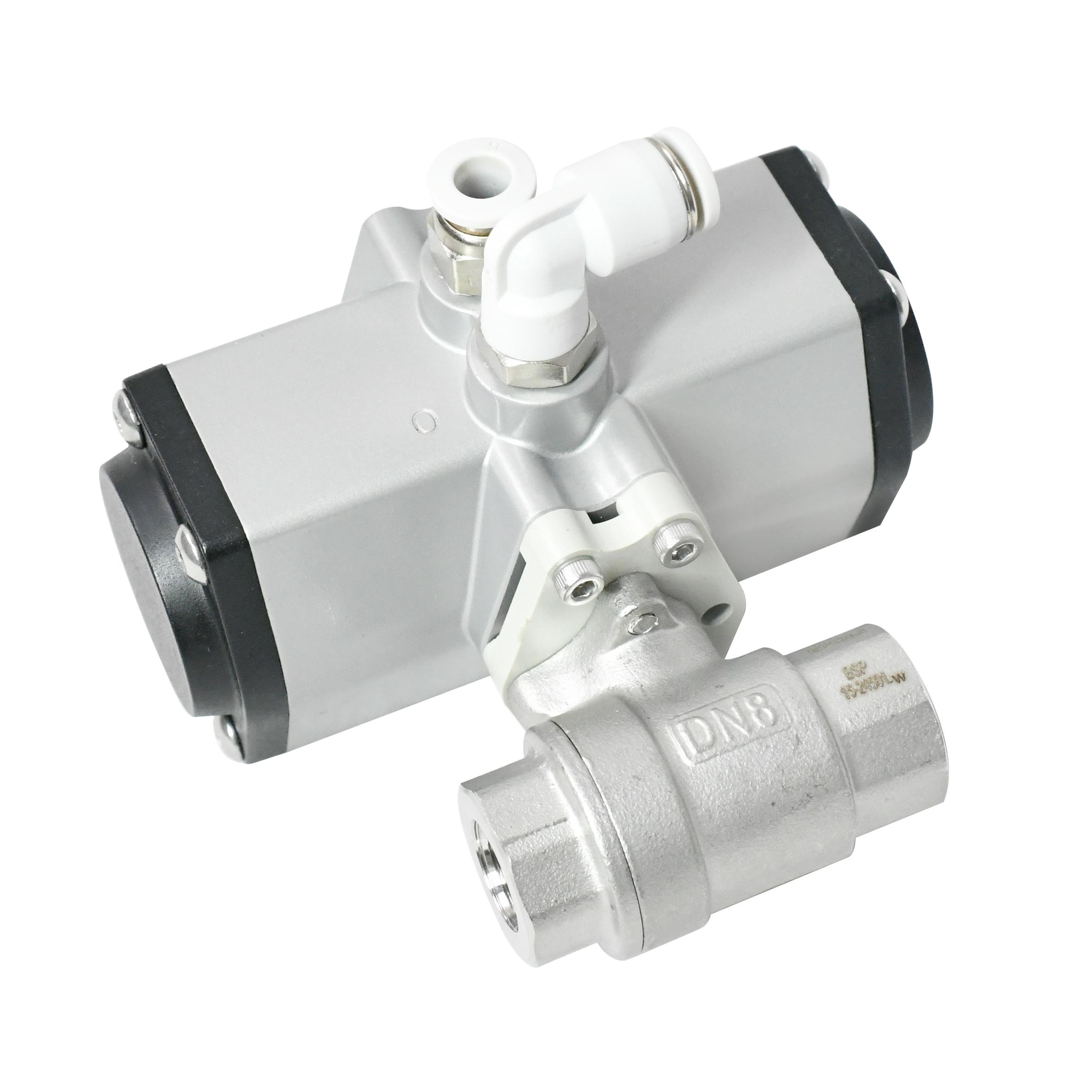

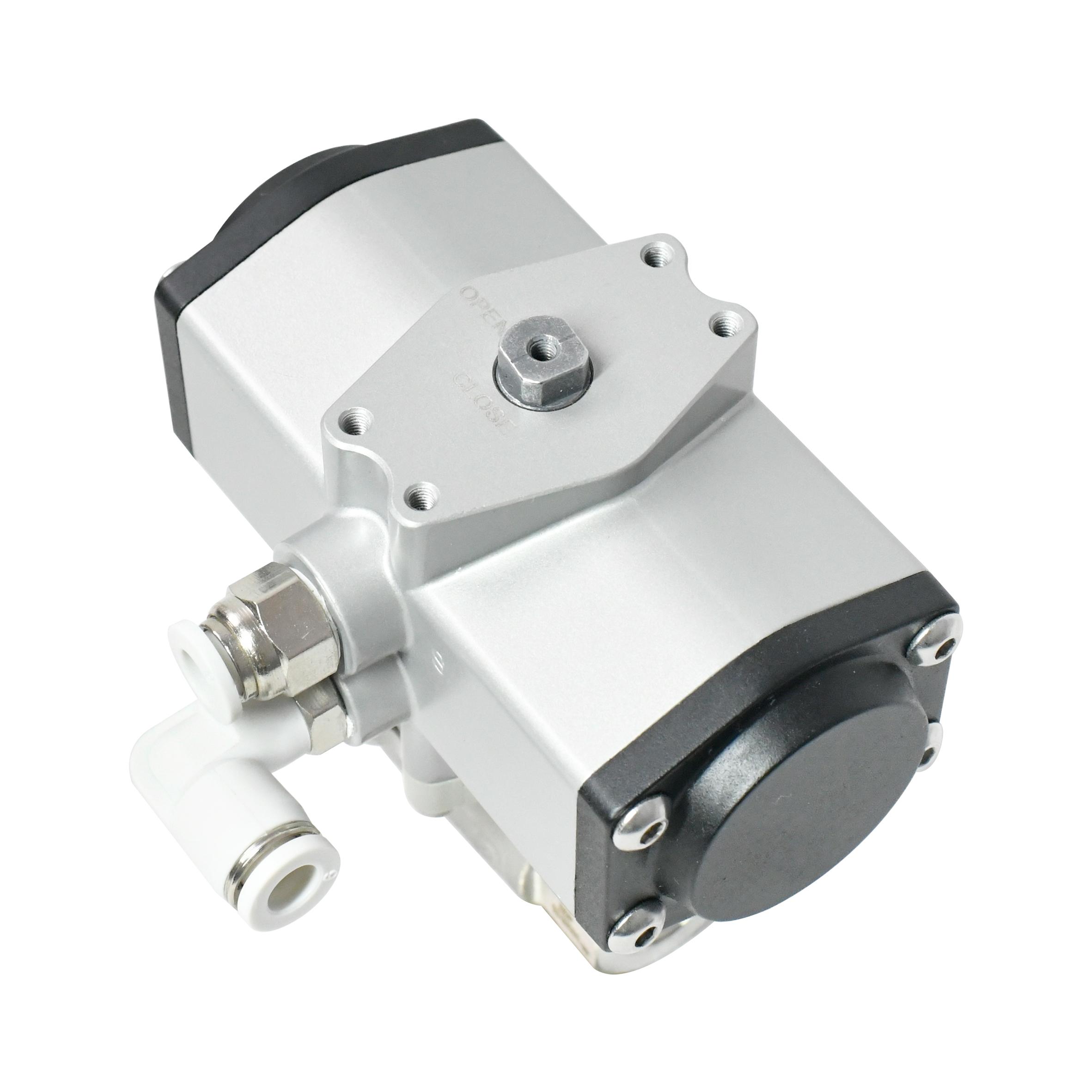

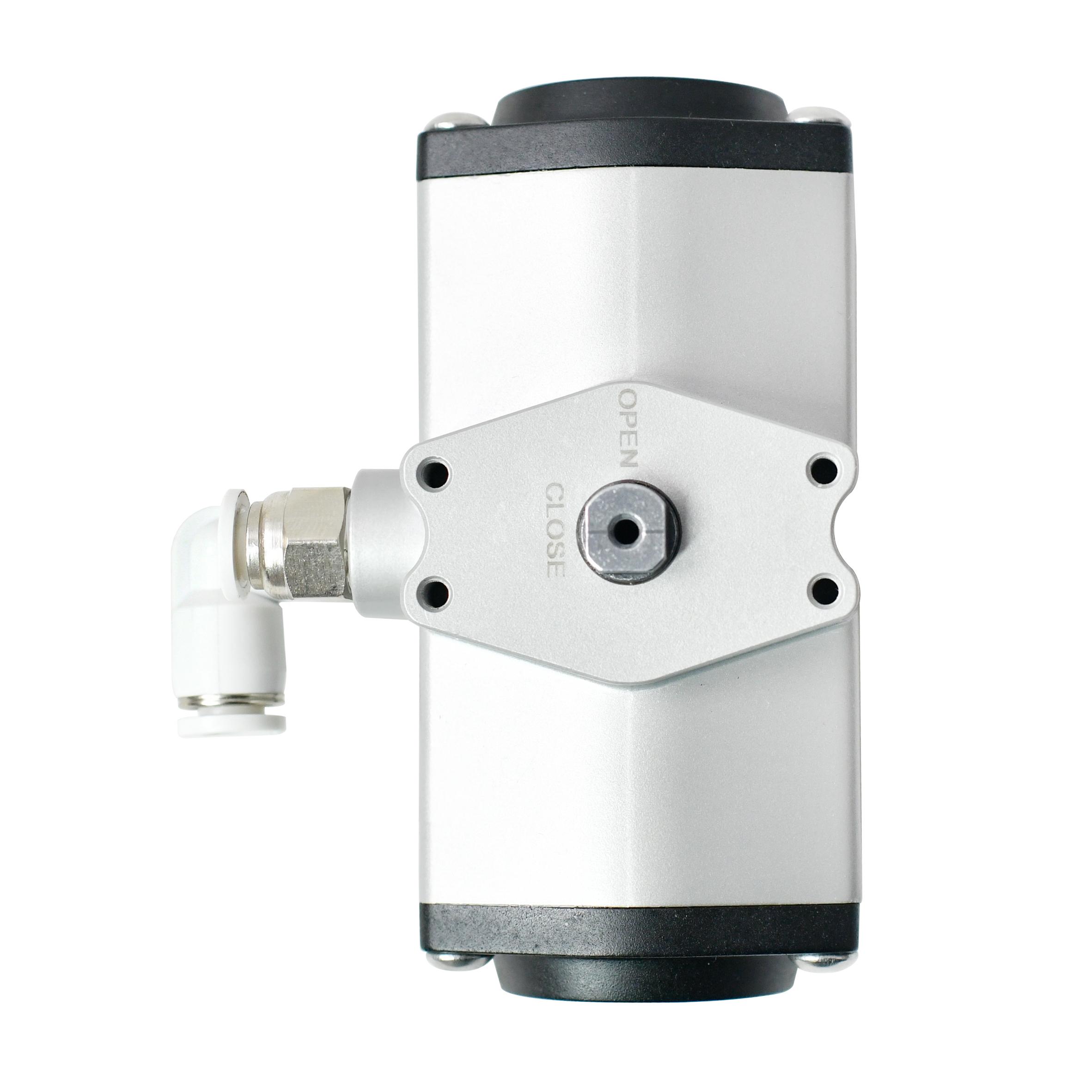

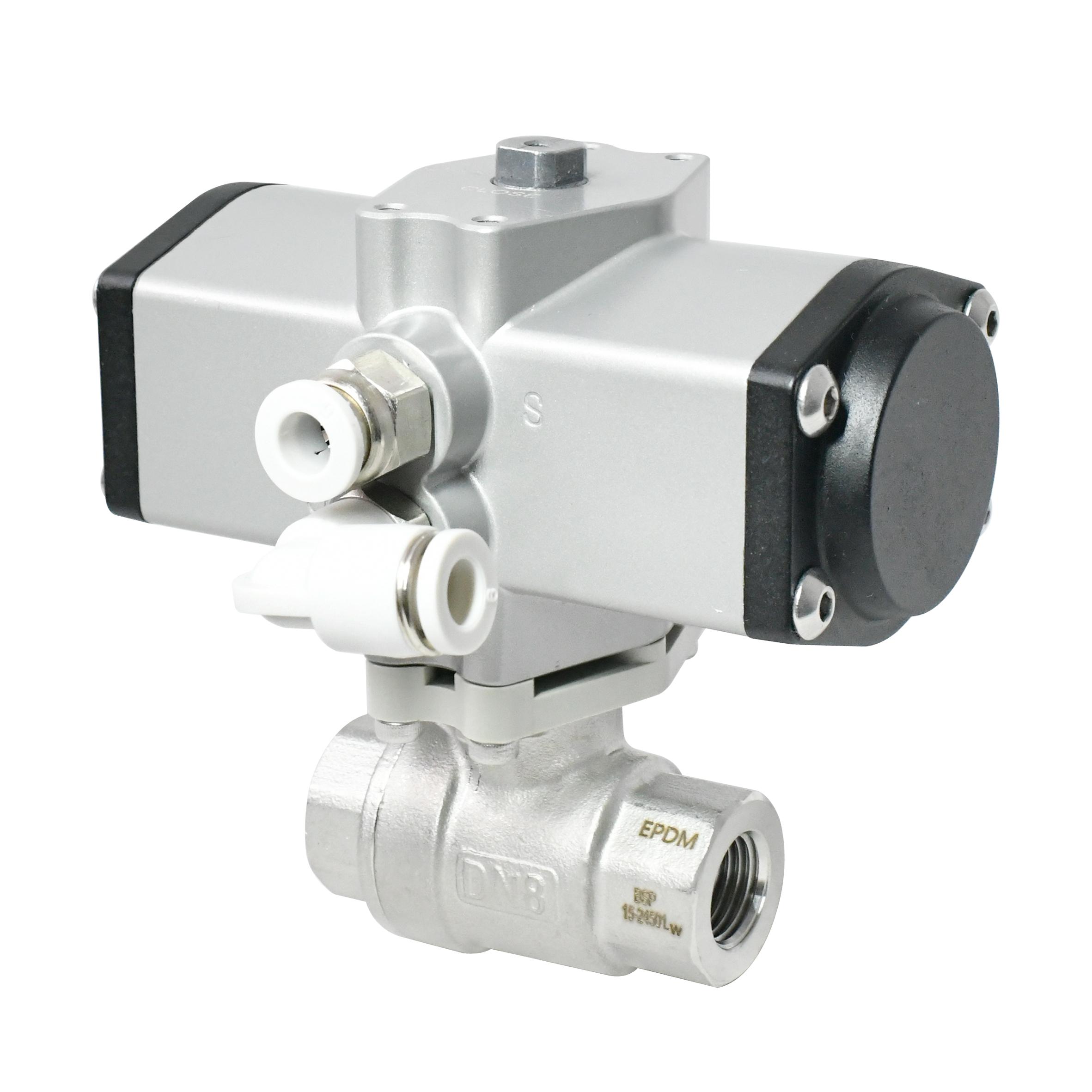

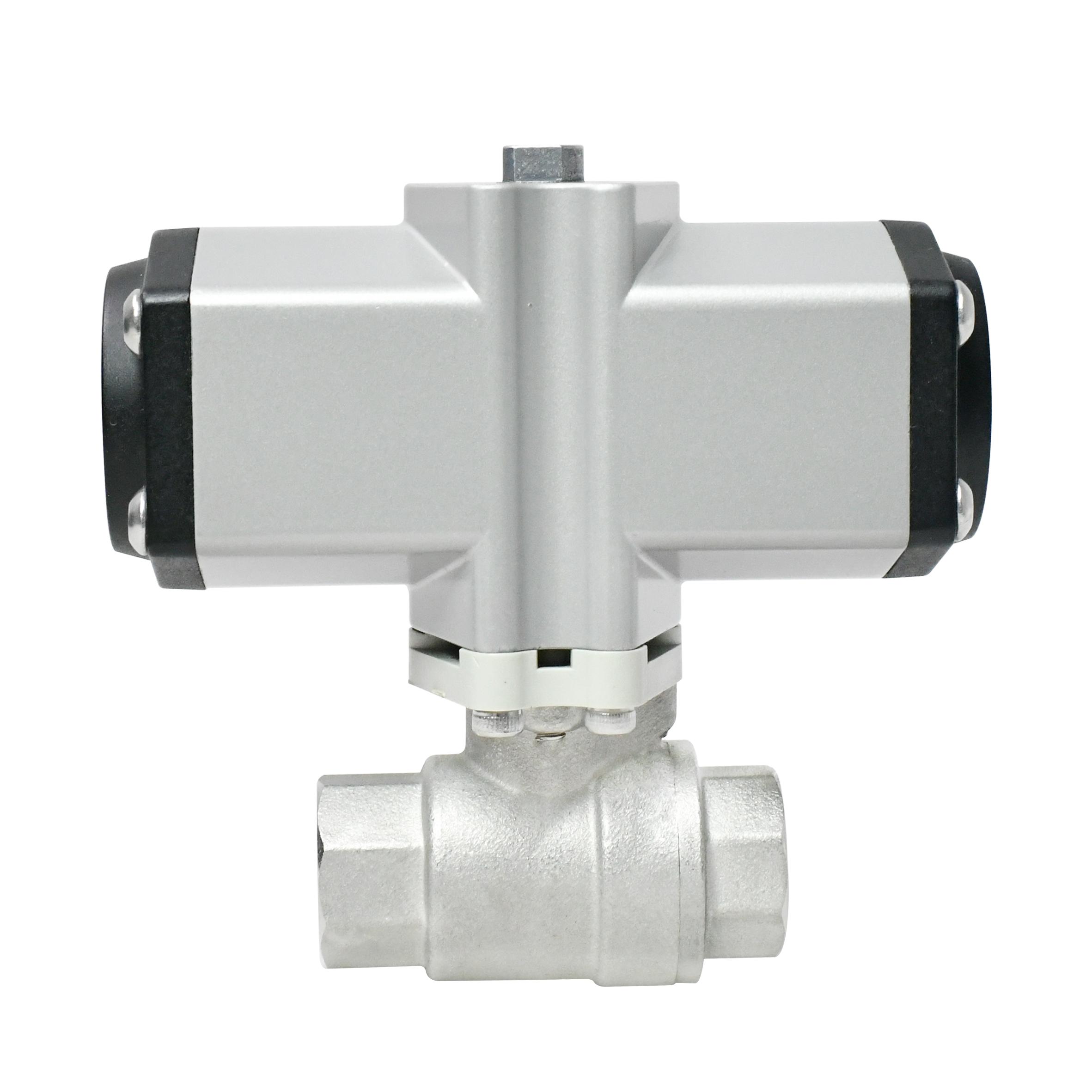

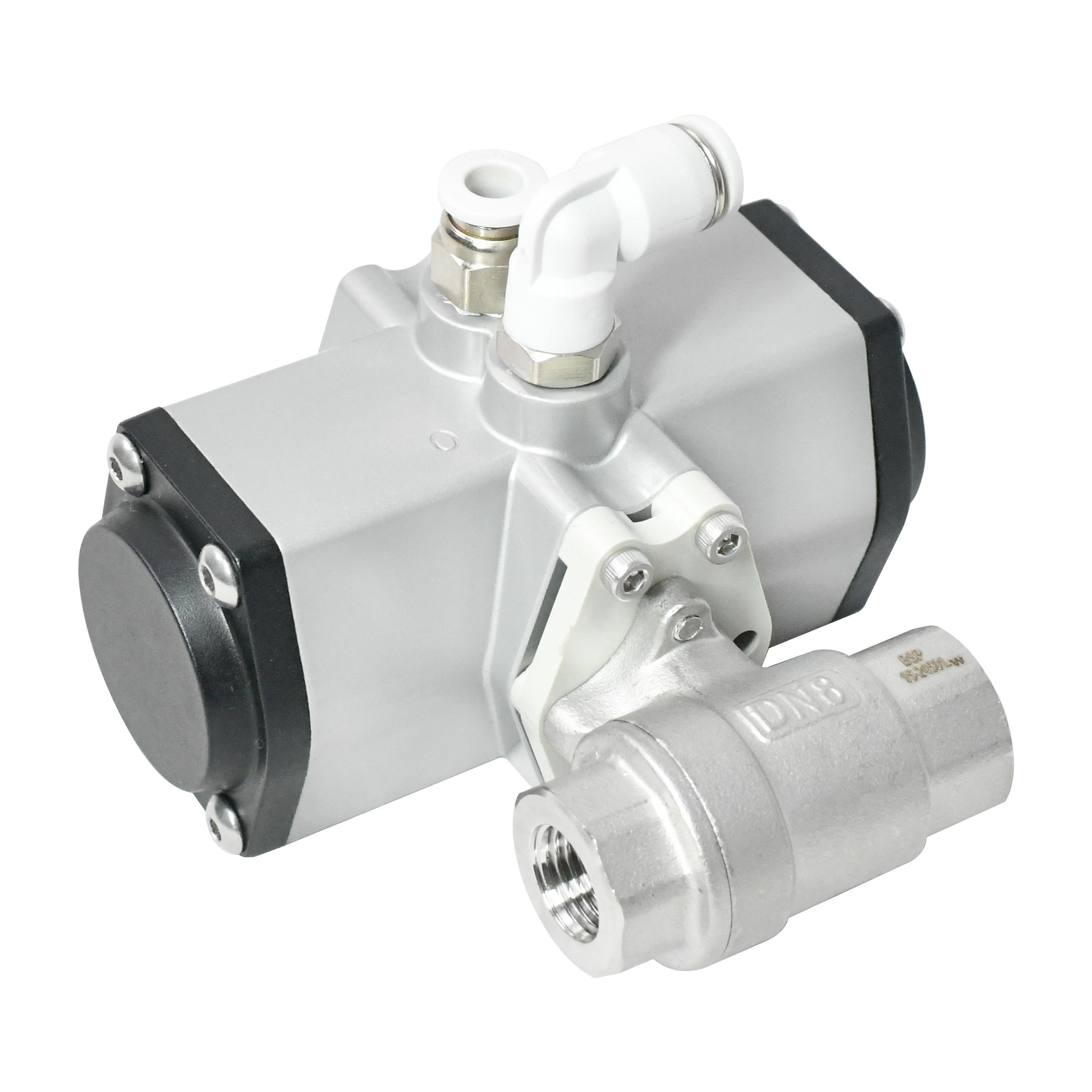

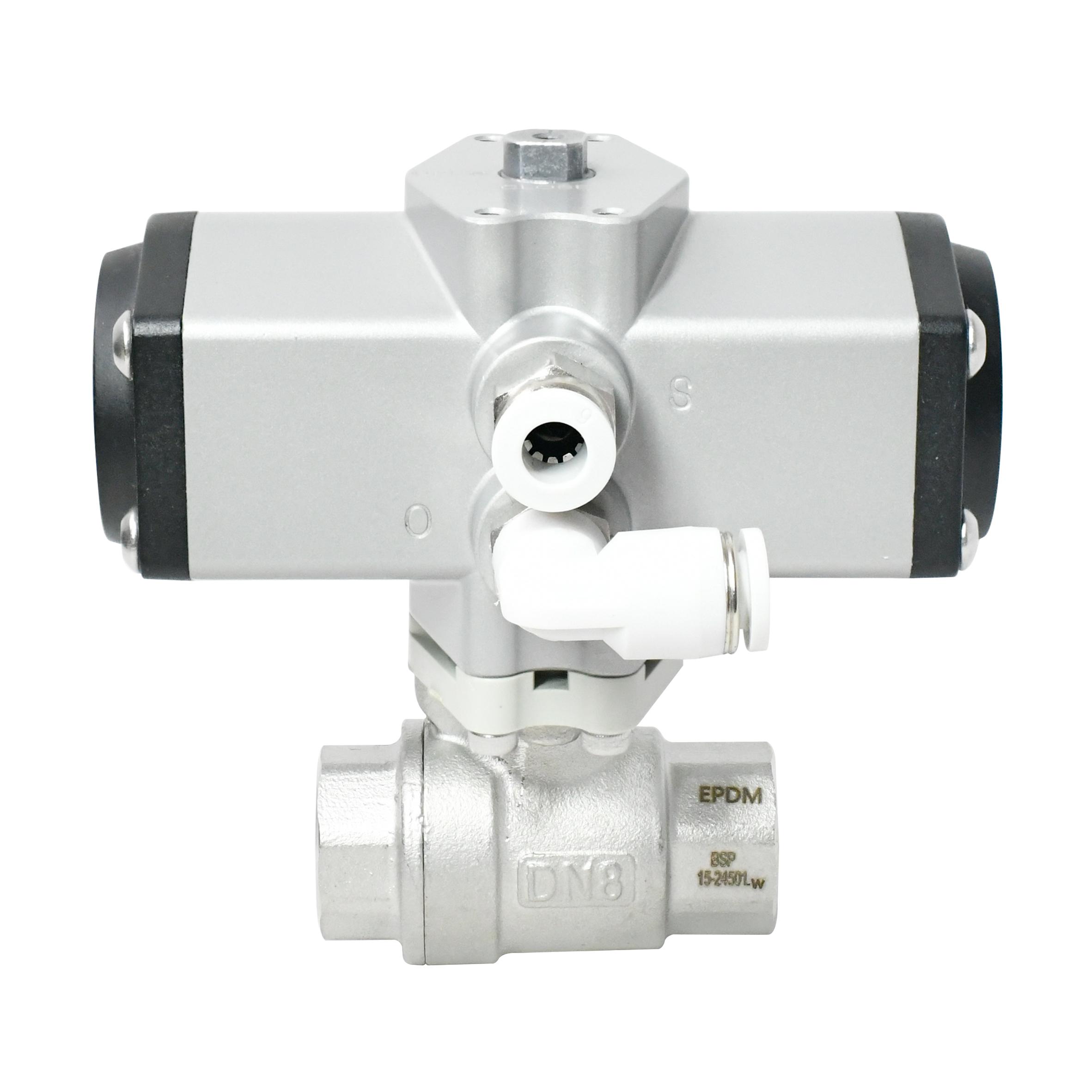

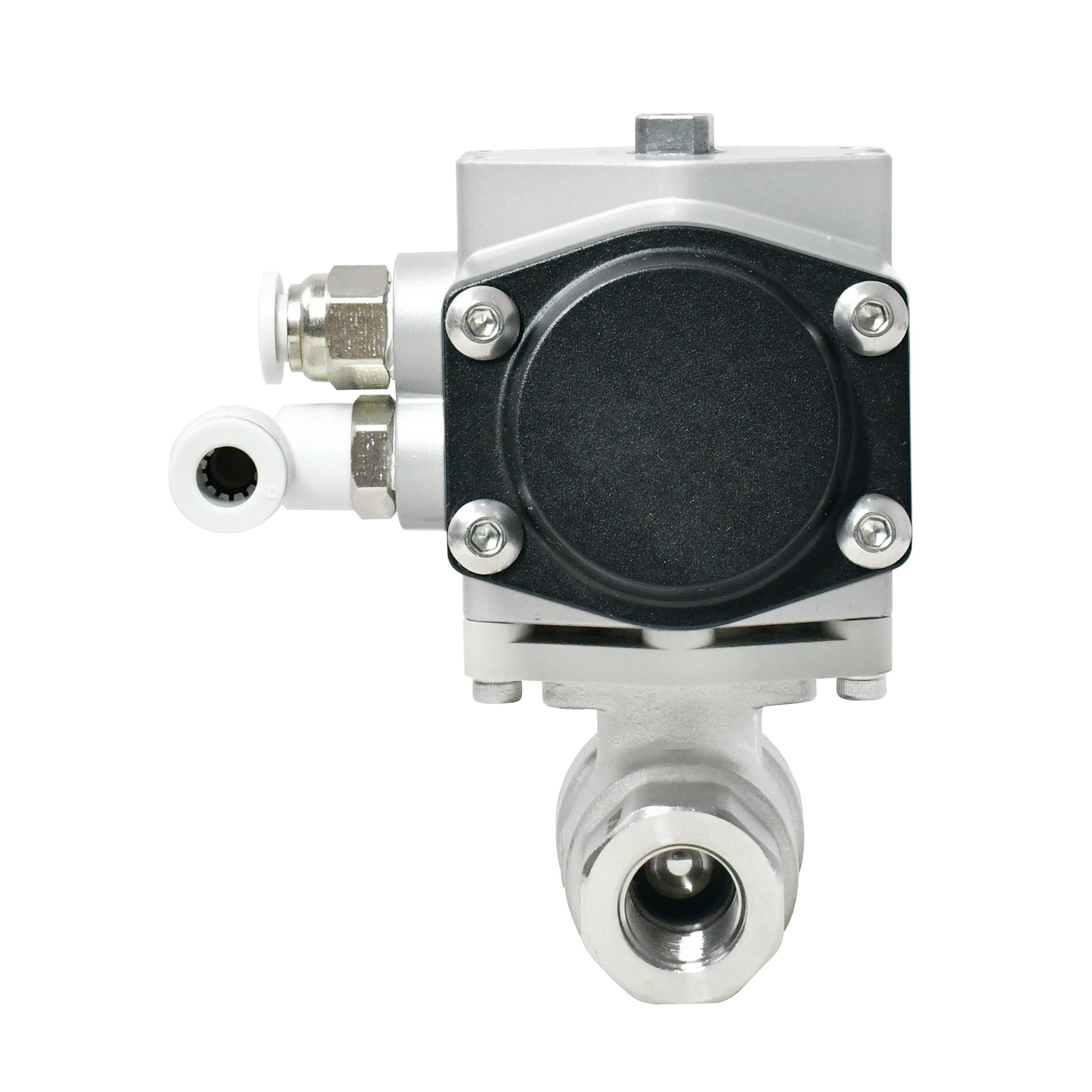

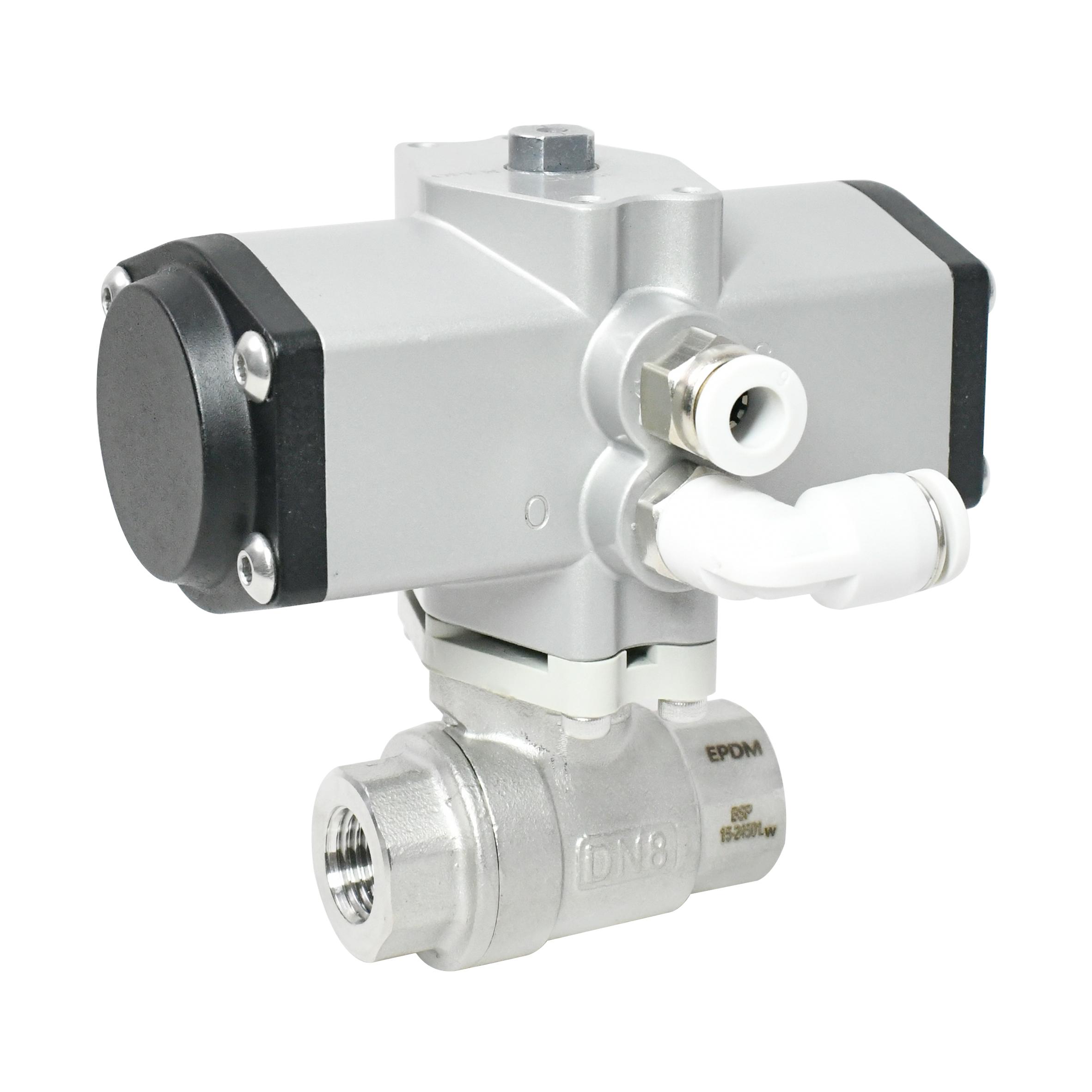

1S Open 1/4 Inch Two-Way BSP NPT Threaded Supported Pneumatic Actuated Ball
P30-T8-S2-B

1. Beautiful appearance, compact structure, high precision, large output torque.


2. The actuator and valve can be assembled from multiple angles, which is convenient for users to allocate space.


3. Ball valve adopts floating soft seal structure, no drip leakage, suitable for heavy dirt and long-term no action occasions.


4.We can provide OEM and ODM customization services.


Customer feedback
Product model
Installation
Mobile View
Technical parameters
Valve size
NPT/BSP 1/4'' 3/8'' 1/2'' 3/4'' 1'' （Optional）
Air source pressure
0.4-0.75 MPa
Circulation medium
Fluid、air
Actuator material
Aluminum
Valve body material
SS304
Life time
70000 times
Openiclose time
≤5S
Life time
300000 times
Nominal Pressure
≤1.6 MPa
Actuator torque
3N.m
Open/close time
≤1S
Environment temperature
-15-50℃
Liquid temperature
2-90℃
Manual override
Yes
Open/close indicator
Yes
Protection class
IP67
Valve seat
PTFE
The assembly diagram
